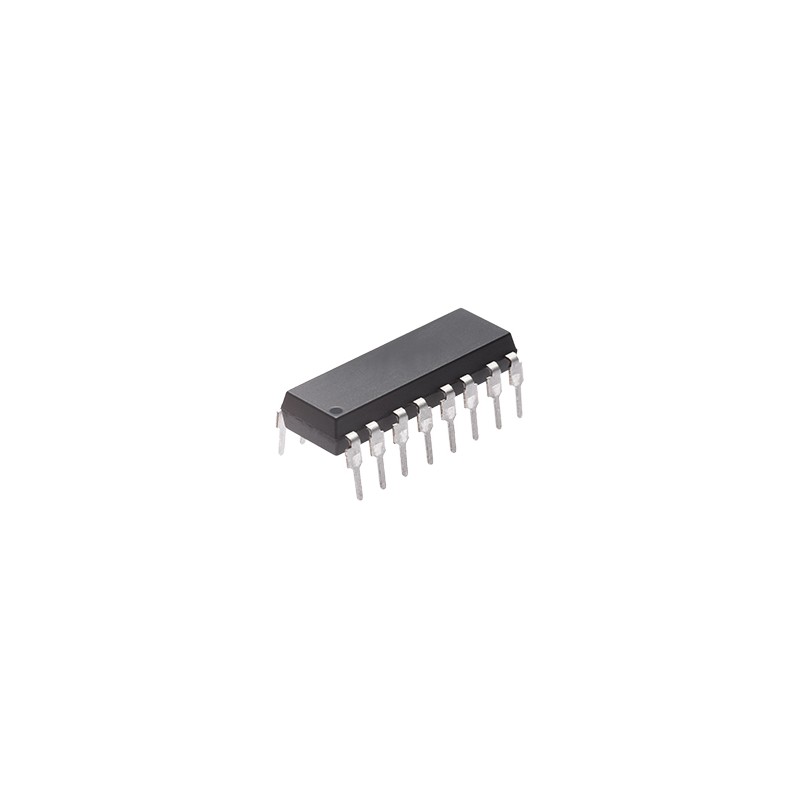

EL847
$1.50
Tax excluded
Description
The EL847 series devices each of consist of an infrared emitting diodes, optically coupled to a phototransistor detector, and provides four isolated channels. They are packaged in a 16-pin DIP package and available in SMD option.
Features
- Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V) High isolation voltage between input and output (Viso=5000 V rms ) Creepage distance >7.62 mm Operating temperature up to +110°C Pb free and RoHS compliant. UL and cUL approved (No. E214129) VDE approved (No. 132249) SEMKO approved NEMKO approved DEMKO approved FIMKO approved CQC approved
Applications
- Programmable Controllers System Appliances
- Measuring Instruments Telecommunication Equipments Home Appliances
- Such As Fan Heaters
- Etc. Signal Transmission Between Circuits Of Differe...
EL847
- Forward Current
- 20mA
- Maximum Voltage
- 1.4V
- Package
- 16 Pin DIP
- Mounting
- SMD
- Operating Temperature
- -55°C to 110°C
- Storage Temperature
- -55°C to 125°C
- Isolation Voltage
- 5000Vrms
- CTR (Current Transfer Ratio)
- 600
- Number of Pins
- 16Pins
