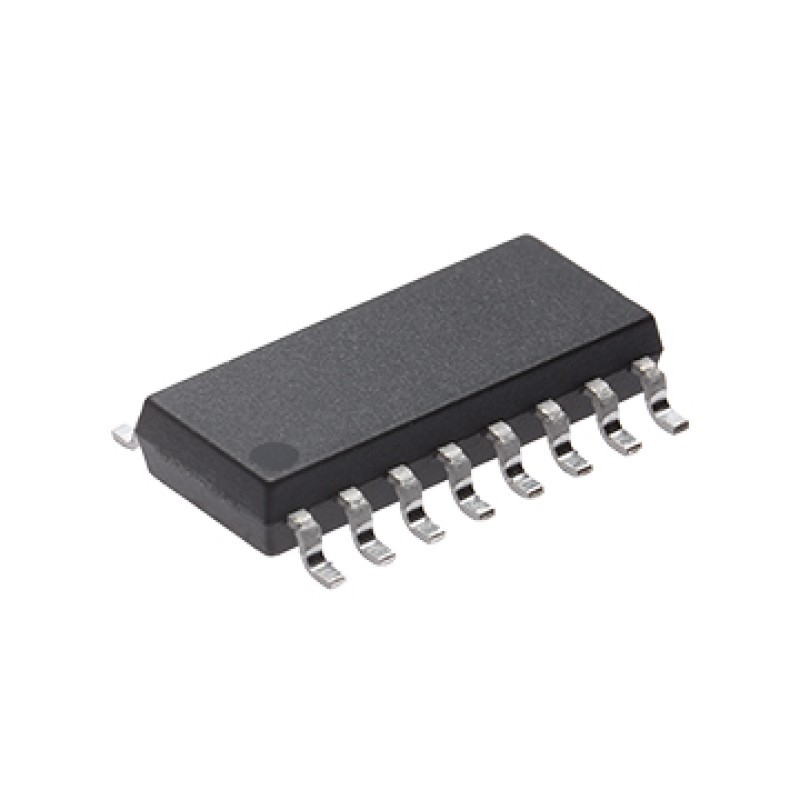

ELQ3H7(TA)

$0.56
Tax excluded

Description

The ELQ3H7 contains of an infrared emitting diode optically coupled to a phototransistor detector encapsulated with green compound. ELQ3H7 offers 4 channels in a 16-pin small outline SMD package.

Features

  • Halogens free
  • Current transfer ratio (CTR: 50~600% at IF =5mA; VCE =5V)
  • High isolation voltage between input and output (Viso=3750 V rms )
  • Compact 8 Pin SSOP with a 2.0 mm profile
  • Pb free and RoHS compliant.
  • UL approved (E214129)
  • VDE approved (40028116)
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved
  • CQC approved

Applications

  • Dc-Dc Converters
  • Programmable Controllers
  • Telecommunication Equipments
  • Signal Transmission Between Circuits Of Different Potentials And Im...
ELQ3H7(TA)
Forward Current
20mA
Maximum Voltage
1.4V
Package
16 Pin SSOP-DC
Mounting
SMD
Operating Temperature
-55°C to 110°C
Storage Temperature
-55°C to 125°C
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
50
Number of Pins
16Pins
