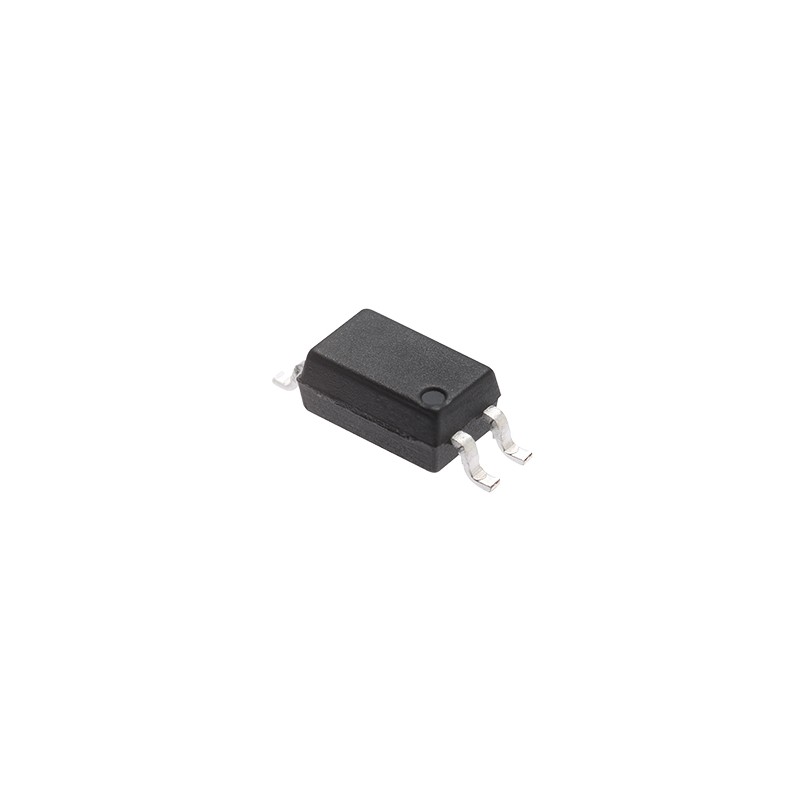

EL3H7(C)(TA)-VG

$0.18
Tax excluded

Description

The EL3H7-G Series devices consist of an infrared emitting diode, optically coupled to a phototransistor detector encapsulated with green compound. They are packaged in a 4-pin small outline SMD package.

Features

  • Halogens free
  • (Br <900 ppm ;Cl <900 ppm ; Br+Cl < 1500 ppm)
  • Current transfer ratio
  • (CTR: 50~600% at IF =5mA; VCE =5V)
  • (CTR: 40~320% at IF =10mA; VCE =5V)
  • High isolation voltage between input and output (Viso=3750 V rms )
  • Compact 4 Pin SSOP with a 2.0 mm profile
  • Compliance with EU REACH
  • Pb free and RoHS compliant.
  • UL and cUL approved(No. E214129)
  • VDE approved (No. 132249)
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved

Applications

  • Dc-Dc Converte...
EL3H7(C)(TA)-VG
Forward Current
20mA
Maximum Voltage
1.4V
Package
4 Pin SSOP DC
Mounting
SMD
Operating Temperature
-55°C to 110°C
Storage Temperature
-55°C to 125°C
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
200
Number of Pins
Quad
