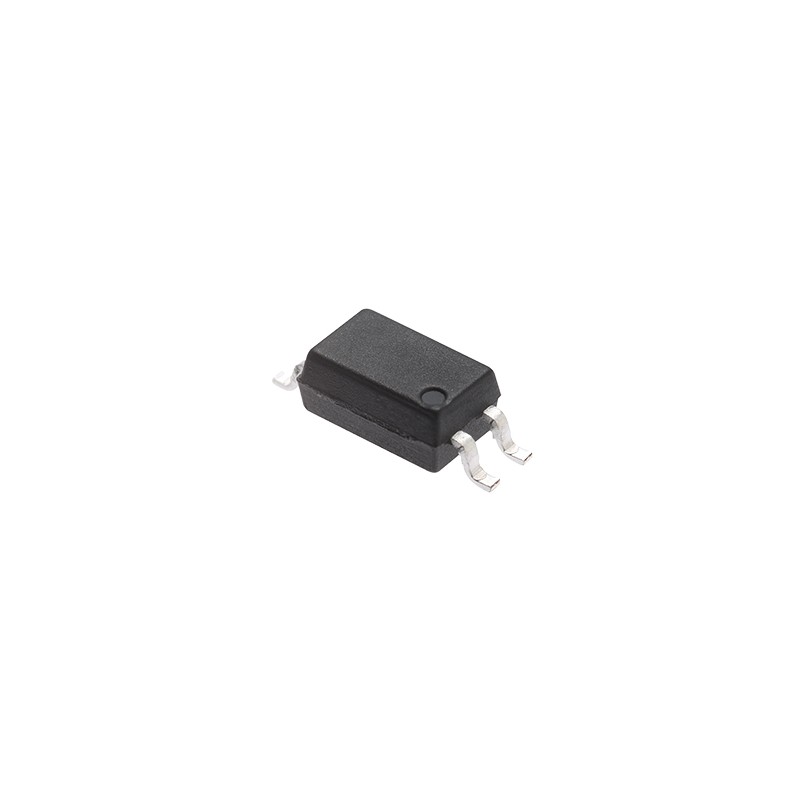

EL3H7-G

$0.18

Tax excluded

Description
Product Details

Description

The EL3H7-G Series devices consist of an infrared emitting diode, optically coupled to a phototransistor detector encapsulated with green compound. They are packaged in a 4-pin small outline SMD package.

Features

Halogens free
(Br <900 ppm ;Cl <900 ppm ; Br+Cl < 1500 ppm)
Current transfer ratio
(CTR: 50~600% at IF =5mA; VCE =5V)
(CTR: 40~320% at IF =10mA; VCE =5V)
High isolation voltage between input and output (Viso=3750 V rms )
Compact 4 Pin SSOP with a 2.0 mm profile
Compliance with EU REACH
Pb free and RoHS compliant.
UL and cUL approved(No. E214129)
VDE approved (No. 132249)
SEMKO approved
NEMKO approved
DEMKO approved
FIMKO approved

Applications

Dc-Dc Converte...

Reference EL3H7-G

Forward Current: 20mA
Maximum Voltage: 1.4V
Package: 4 Pin SSOP DC
Mounting: SMD
Operating Temperature: -55°C to 110°C
Storage Temperature: -55°C to 125°C
Isolation Voltage: 3750Vrms
CTR (Current Transfer Ratio): 50
Number of Pins: Quad
