EL3H4(TA)-VG

$0.20
Tax excluded

Description

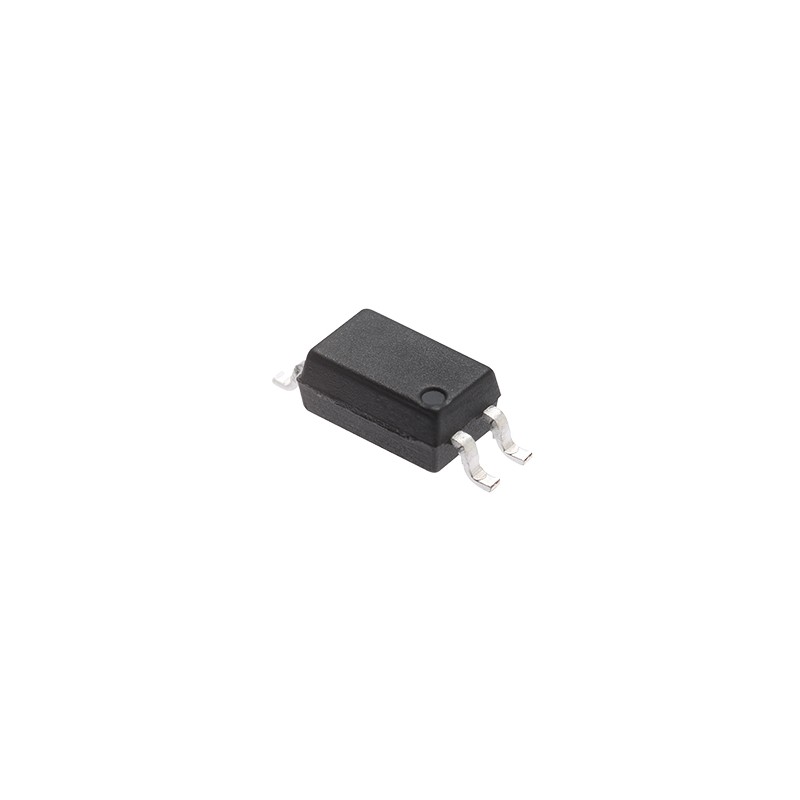

The EL3H4-G series contains two infrared emitting diode, connected in inverse parallel, optically coupled to a phototransistor encapsulated with green compound. It is packaged in a 4-pin small outline SMD package.

Features

  • Compliance Halogen Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
  • AC input response
  • Current transfer ratio (CTR: Min. 20% at IF = ±1mA,VCE = 5V)
  • High isolation voltage between input and output (Viso = 3750 V rms )
  • Compact small outline package
  • Pb free
  • Compliance with EU REACH
  • The product itself will remain within RoHS compliant version
  • UL and cUL approved(No. E214129)
  • VDE approved (No. 132249)
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved
  • CQC approved
EL3H4(TA)-VG
Forward Current
20mA
Maximum Voltage
1.4V
Package
4 Pin SSOP AC
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
20
