EL354N-G

$0.45
Tax excluded

Description

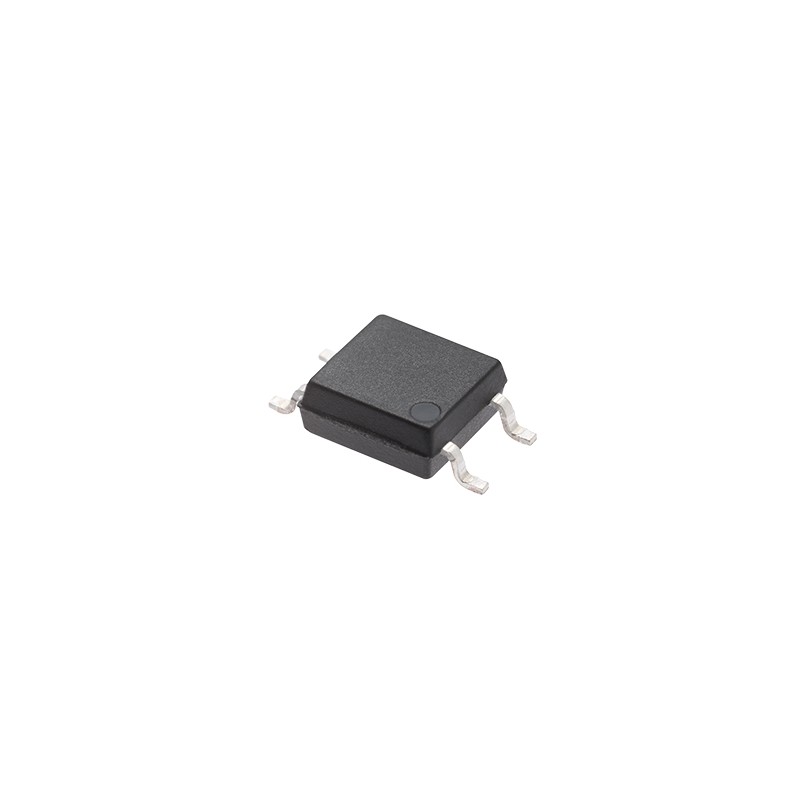

The EL354N-G series of devices each consist of two infrared emitting diode, connected in inverse parallel, optically coupled to a phototransistor detector. They are packaged in a 4-pin small outline package.

Features

  • Halogens free (Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
  • Current transfer ratio (CTR: Min. 20% at IF =±1mA ,VCE =5V)
  • High isolation voltage between input and output (Viso=3750 V rms)
  • Compact small outline package
  • Pb free
  • Compliance with EU REACH
  • The product itself will remain within RoHS compliant version
  • UL and cUL approved (No. E214129)
  • VDE approved (No. 132249)
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved
  • CQC approved

Applications

  • Ac Line Monitor
EL354N-G
Forward Current
20mA
Maximum Voltage
1.4V
Package
4 Pin SOP-AC
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
20
