EL208(TA)

$0.57
Tax excluded

Description

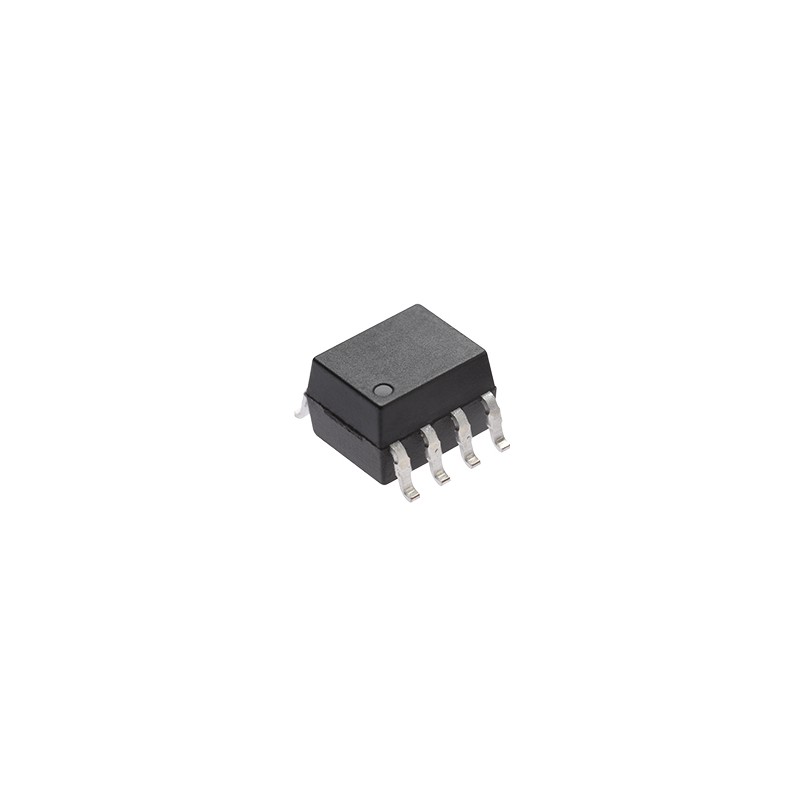

The EL20X and EL21X series contain an infrared emitting diode optically coupled to a phototransistor detector. The devices are packaged in an 8-pin small outline package which conforms to the standard SO-8 footprint.

Features

  • Halogens free.(Br <900 ppm ;Cl <900 ppm ; Br+Cl < 1500 ppm)
  • Current transfer ratios offered in narrow ranges
  • EL205: 40-80%       EL211: >20%
  • EL206: 63-125%     EL212: >50%
  • EL207: 100-200%   EL213: >100%
  • EL208: 160-320%
  • High isolation voltage between input and output (Viso = 3750 Vrms)
  • Operating temperature range of -55 to +110℃
  • High BVceo of 80V
  • Standard SO-8 footprint package
  • Compliance with EU REACH
  • Pb free and RoHS compliant
  • UL and cUL approved(No. E214129)
  • VDE app...
EL208(TA)
Forward Current
10mA
Maximum Voltage
1.5V
Package
8 Pin SOP
Mounting
SMD
Operating Temperature
-55°C to 110°C
Storage Temperature
-55°C to 125°C
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
320
Number of Pins
8Pins
