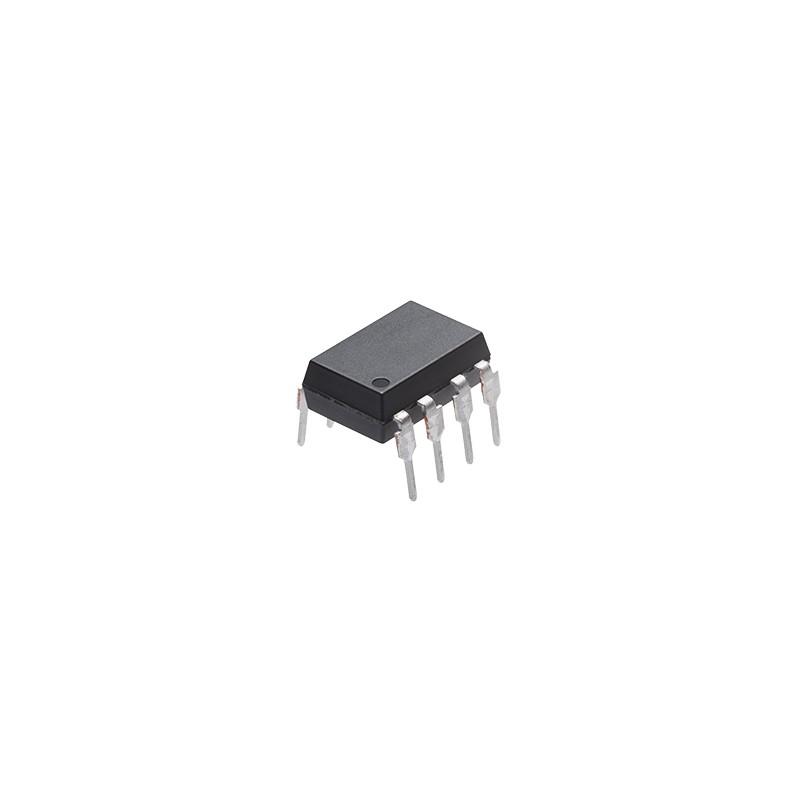

EL0600(TA)

$0.91
Tax excluded

Description

The EL0600, EL0601 and EL0611 devices each consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output. The devices are packaged in an 8-pin small outline package which conforms to the standard SO8 footprint.

Features

  • Compliance Halogen Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
  • High speed 10Mbit/s
  • 10kV/μs minimum common mode transient immunity at VCM= 1KV (EL0611)
  • Wide operating temperature range of -40°C to 100°C
  • Logic gate output
  • High isolation voltage between input and output (Viso=3750 Vrms)
  • Compliance with EU REACH
  • Pb free and RoHS compliant.
  • UL and cUL approved
  • VDE approved
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved
EL0600(TA)
Forward Current
10mA
Maximum Voltage
1.8V
Package
8 Pin DIP-DC
Isolation Voltage
3750Vrms
