PT333-3C
$0.45
Tax excluded
Description

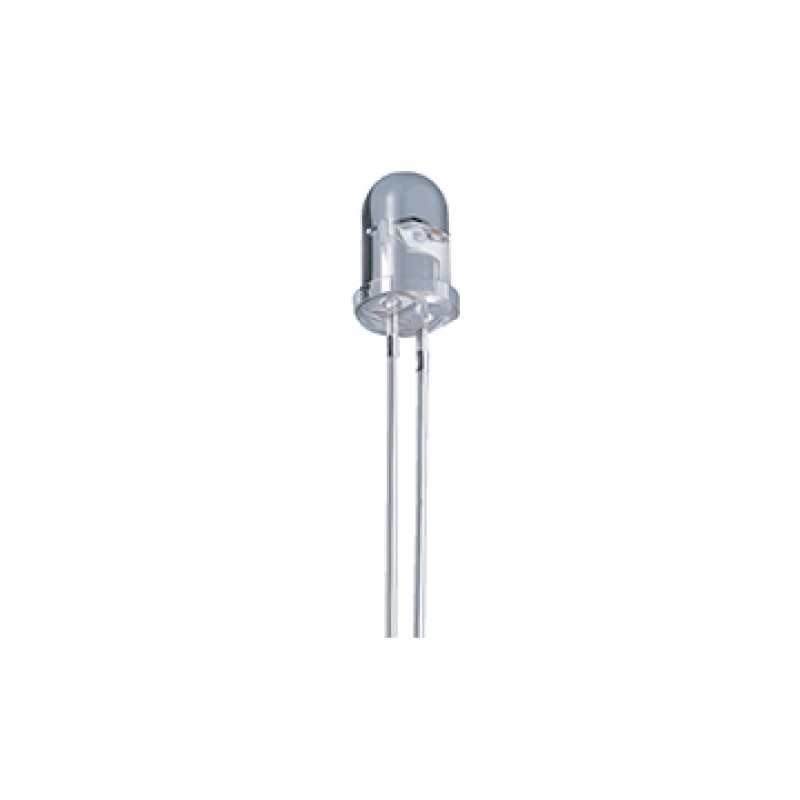

PT333-3C is a high speed and high sensitive NPN silicon NPN epitaxial planar phototransistor molded in a standard 5 mm package. Due to its water clear epoxy the device is sensitive to infrared radiation.
Features
- Fast response time High photo sensitivity Pb free The product itself will remain within RoHS compliant version.
Applications
- Infrared Applied System Camera Printer Cockroach Catcher
PT333-3C
- Lens Color
- Transparent
- Package
- 5mm Round Lamp
- Mounting
- Through Hole
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Rise/Fall Time
- 15000 / 15000 ns
- Saturation Voltage
- 0.4V
