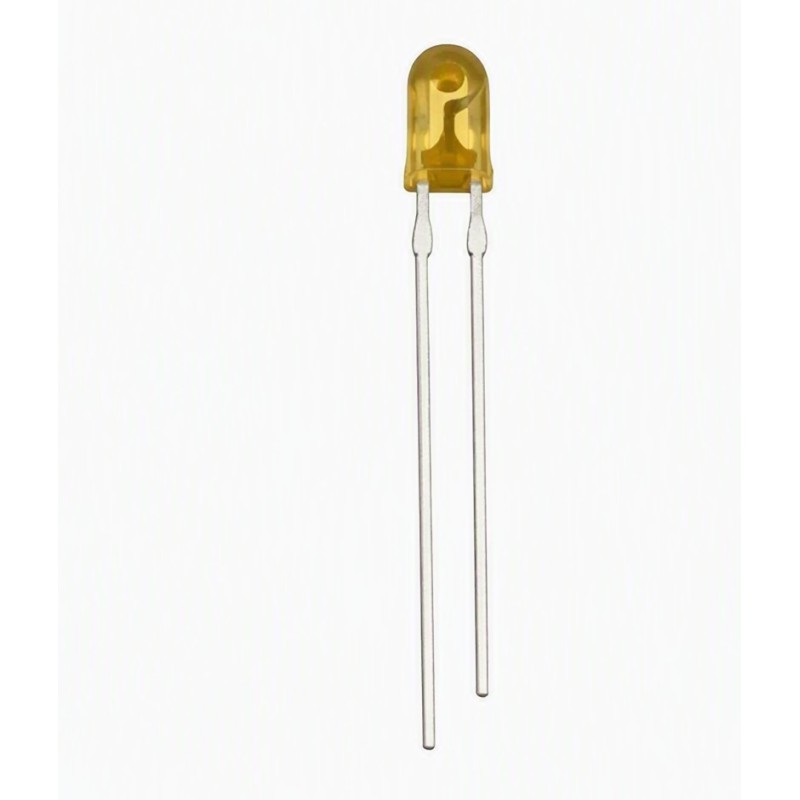

EALP03OLAYA0
$0.21
Tax excluded
Description
This precision optical performance oval LED is specifically designed for passenger information signs. This lamp has matched radiation patterns with yellow, blue or green mixing color applications.
Features
- High luminous intensity output Oval Shape Well defined spatial radiation Wide viewing angle (21/2) : 110/ 50 UV resistant epoxy The product itself will remain within RoHS compliant version
Applications
- Color Graphic Signs Message Boards Variable Message Signs (Vms) Commercial Outdoor Advertising
EALP03OLAYA0
100 Items
- Forward Current
- 20mA
- Mounting
- Through Hole
- Lens Color
- Yellow Diffused
- Forward Voltage
- 2.6V
- Pulsed Forward Current
- 160mA
- Beam Angle
- 110 / 50deg.
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
