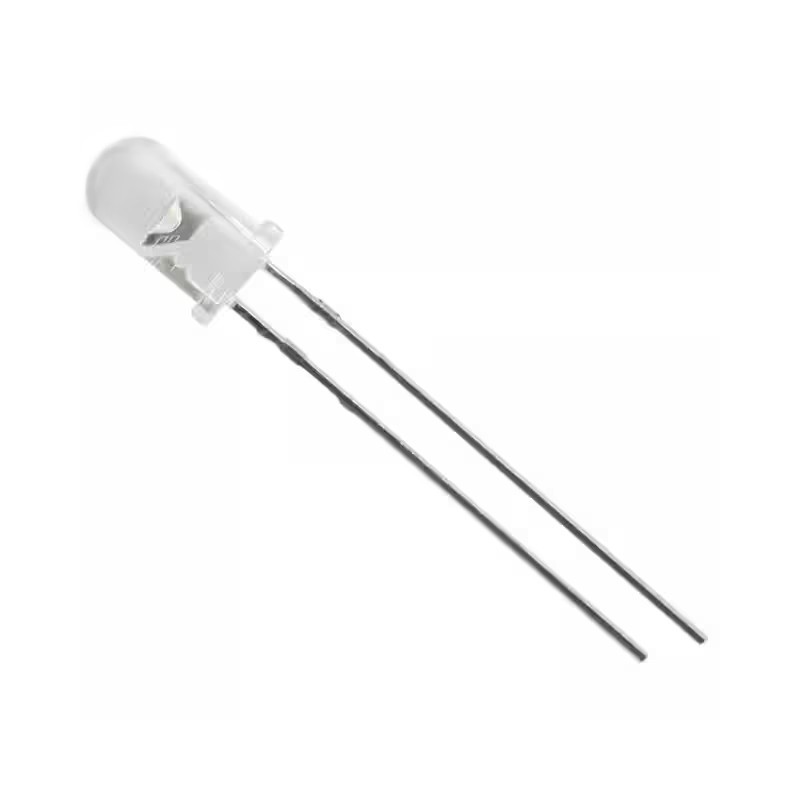

HIR8323/C16
$0.45
Tax excluded
Description
EVERLIGHT’s Infrared Emitting Diode (HIR8323/C16) is a high intensity diode , molded in a water clear plastic package. The device is spectrally matched with phototransistor , photodiode and infrared receiver module.
Features
- High reliability High radiant intensity Peak wavelength λp=850nm 2.54mm Lead spacing Low forward voltage Pb Free This product itself will remain within RoHS compliant version.
Applications
- Infrared Applied System
HIR8323/C16
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.65V
- Maximum Voltage
- 1.65V
- Pulsed Forward Current
- 1000mA
- Beam Angle
- 30°
- Package
- 5mm Round Lamp
- Mounting
- Through Hole
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Peak Wavelength
- 850nm
- Radiant Intensity
- 20 mW/sr
