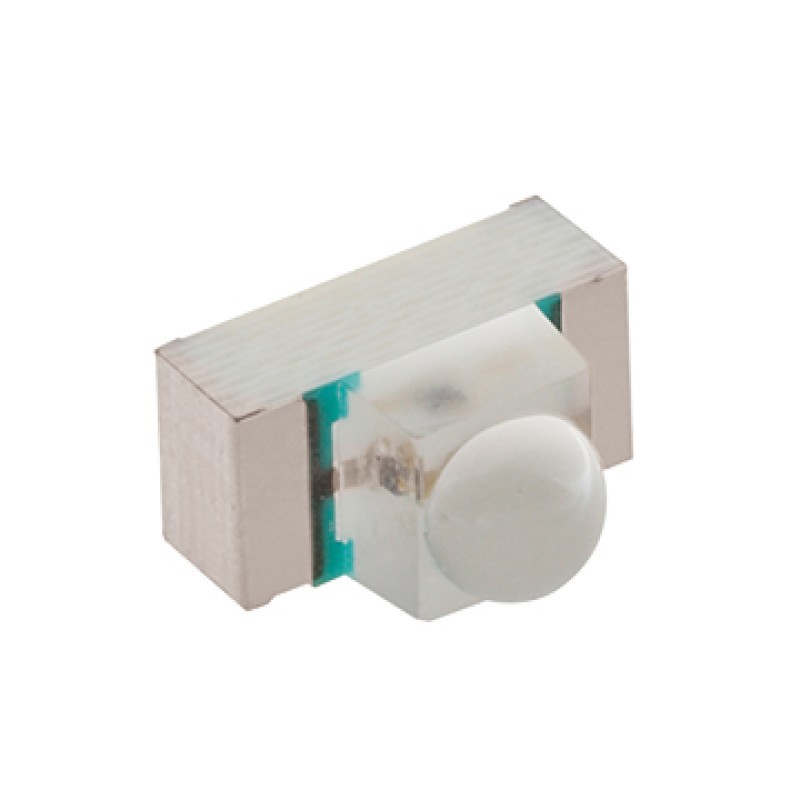

IR26-51C/L510/TR8
$0.45
Tax excluded
Description
IR26-51C/L510/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Small double-end package Low forward voltage Good spectral matching to Si photo detector Package in 8mm tape on 7〞diameter reel. Pb free The product itself will remain within RoHS compliant version.
Applications
- Infrared Applied System
IR26-51C/L510/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.7V
- Maximum Voltage
- 1.7V
- Beam Angle
- 20°
- Package
- 1206
- Mounting
- SMD
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 2.65mm
- Peak Wavelength
- 940nm
- Radiant Intensity
- 9 mW/sr
