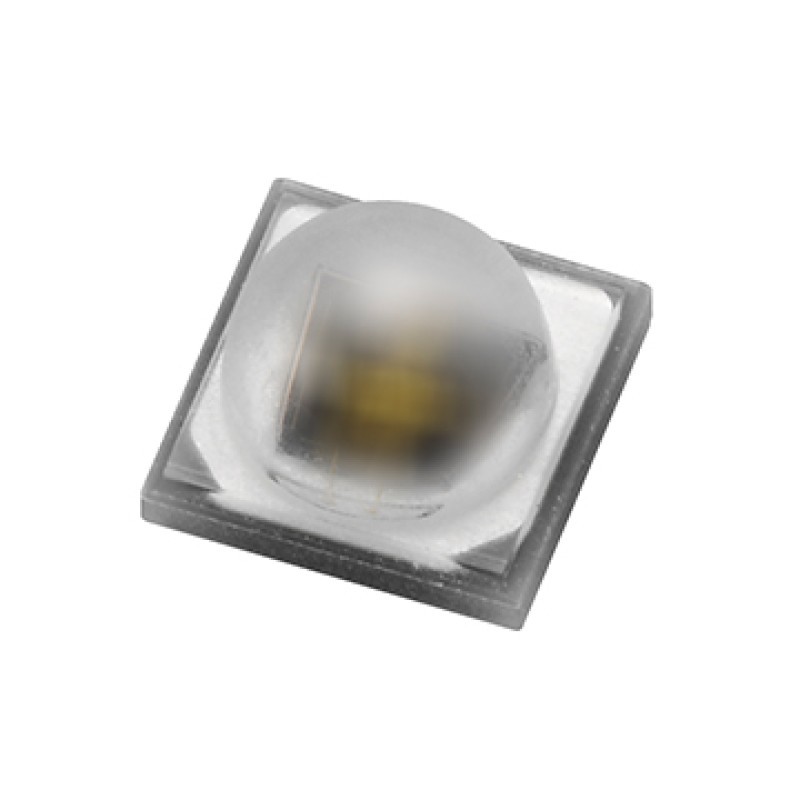

HIR-C19D-1N150/L649-P03/TR
$4.60
Tax excluded
Description
HIR-C19D-1N150/L649-P03/TR series is an infrared emitting diode in miniature SMD package which is molded in a water clear silicone with spherical top view lens. The device is spectrally matched with silicon photo diode, Phototransistor.
Features
- Small package with high efficiency Peak wavelength λp=850 nm Soldering methods:SMT Thermal resistance (junction to lead): 11℃/W. Pb free The product itself will remain within RoHS compliant version.
Applications
- Ccd Camera Infrared Applied System
HIR-C19D-1N150/L649-P03/TR
- Lens Color
- Water Clear
- Forward Current
- 350nm
- Forward Voltage
- 2.65V
- Maximum Voltage
- 2.65V
- Beam Angle
- 150°
- Package
- 3535
- Mounting
- SMD
- Operating Temperature
- -40°C to 125°C
- Storage Temperature
- -40°C to 125°C
- Thickness
- 2.36mm
- Peak Wavelength
- 850nm
- Radiant Intensity
- 200 mW/sr
