IR383

$0.45
Tax excluded

Description

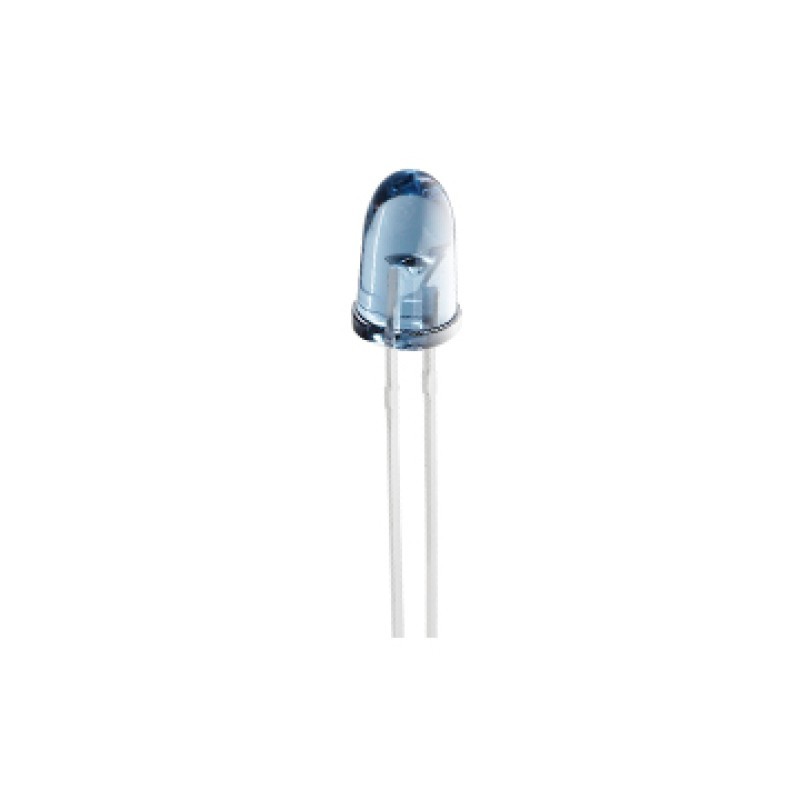

Everlight Americas Infrared Emitting Diode is a high intensity diode ; molded in a blue transparent plastic package. The device is spectrally matched with phototransistor ; photodiode and infrared receiver module.

Features

  • High reliability
  • High radiant intensity
  • Peak wavelength λp=940nm
  • 2.54mm Lead spacing
  • Low forward voltage
  • Pb Free
  • This product itself will remain within RoHS compliant version.

Applications

  • Infrared Applied System
IR383
Lens Color
Blue
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Pulsed Forward Current
1000mA
Beam Angle
20°
Package
5mm Round Lamp
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
940nm
Radiant Intensity
15 mW/sr
