IR1503

$0.45
Tax excluded

Description

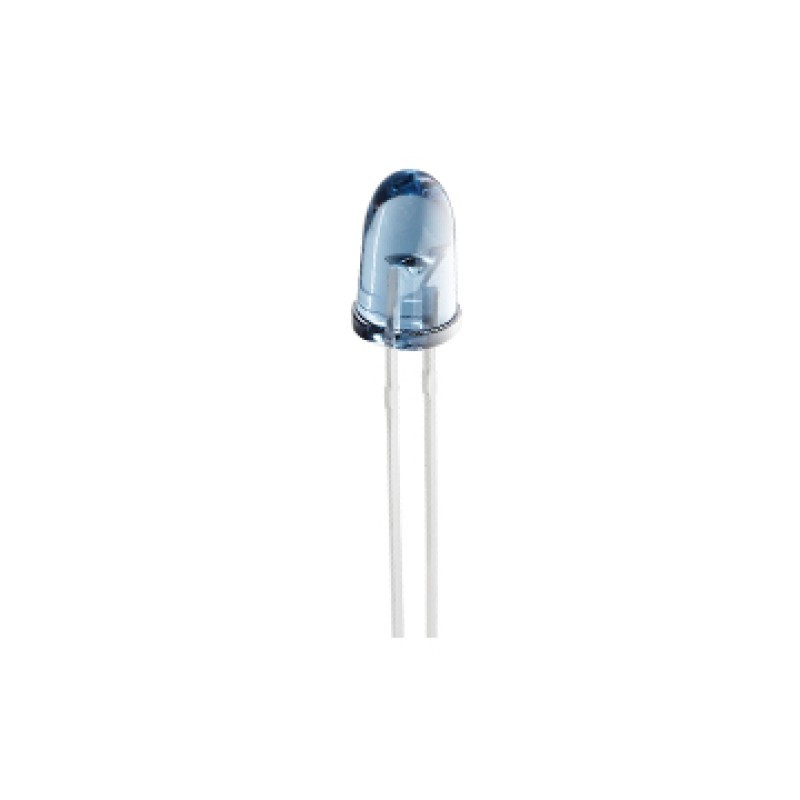

EVERLIGHT’s Infrared Emitting Diode (IR1503 ) is a high intensity diode , molded in a blue plastic package. The device is spectrally matched with phototransistor , photodiode and infrared receiver module.

Features

  • High reliability
  • High radiant intensity
  • Peak wavelength λp=940nm
  • 2.54mm Lead spacing
  • Low forward voltage
  • Pb Free
  • This product itself will remain within RoHS compliant version.
  • Compliance with EU REACH
  • Compliance Halogen Free(Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm)

Applications

  • Free Air Transmission System
  • Infrared Remote Control Units With High Power Requirement
  • Smoke Detector
  • Infrared Applied System
IR1503
Lens Color
Blue
Forward Current
20mA
Forward Voltage
1.5/1.7/4.0V
Maximum Voltage
1.5V
Beam Angle
20°
Package
5mm Round Lamp
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
940nm
Radiant Intensity
15 mW/sr
