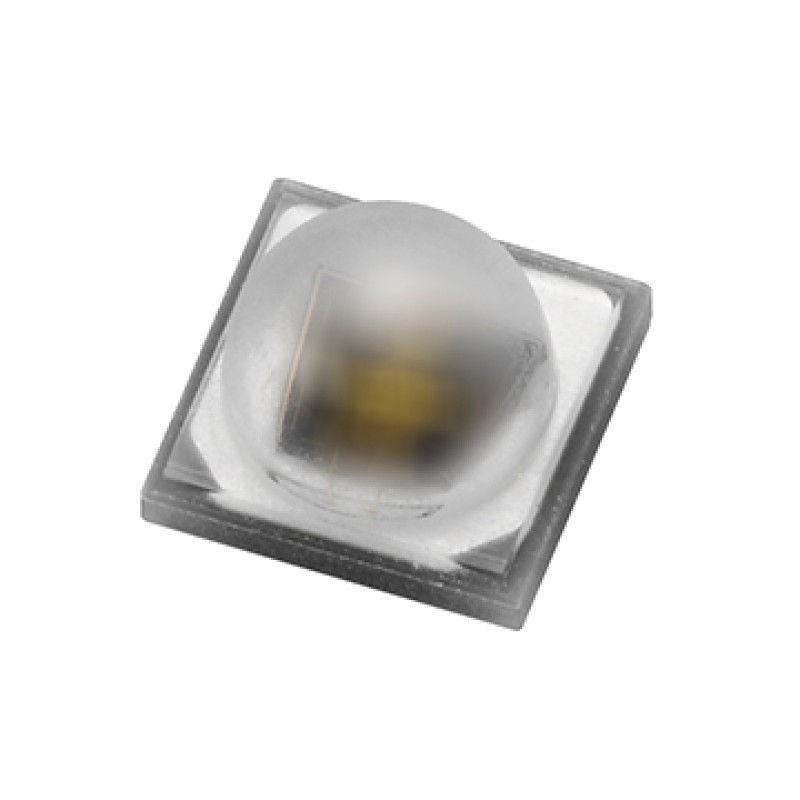

IR-C19-N/L482-P01/TR
$4.60
Tax excluded
Description
IR-C19-N/L482-P01/TR series is an infrared emitting diode in miniature SMD package which is molded in a water clear silicone with spherical top view lens. The device is spectrally matched with silicon photodiode, Phototransistor.
Features
- Small package with high efficiency Peak wavelength λp=940nm Soldering methods:SMT Thermal resistance (junction to lead): 20℃//. Pb free The product itself will remain within RoHS compliant version.
Applications
- Ccd Camera Infrared Applied System
IR-C19-N/L482-P01/TR
- Lens Color
- Water Clear
- Forward Current
- 350mA
- Forward Voltage
- 3.5V
- Maximum Voltage
- 1.9V
- Beam Angle
- 105°
- Package
- 3535
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 2.03mm
- Peak Wavelength
- 940nm
- Radiant Intensity
- 40 mW/sr
