IR204-A-L

$0.45
Tax excluded

Description

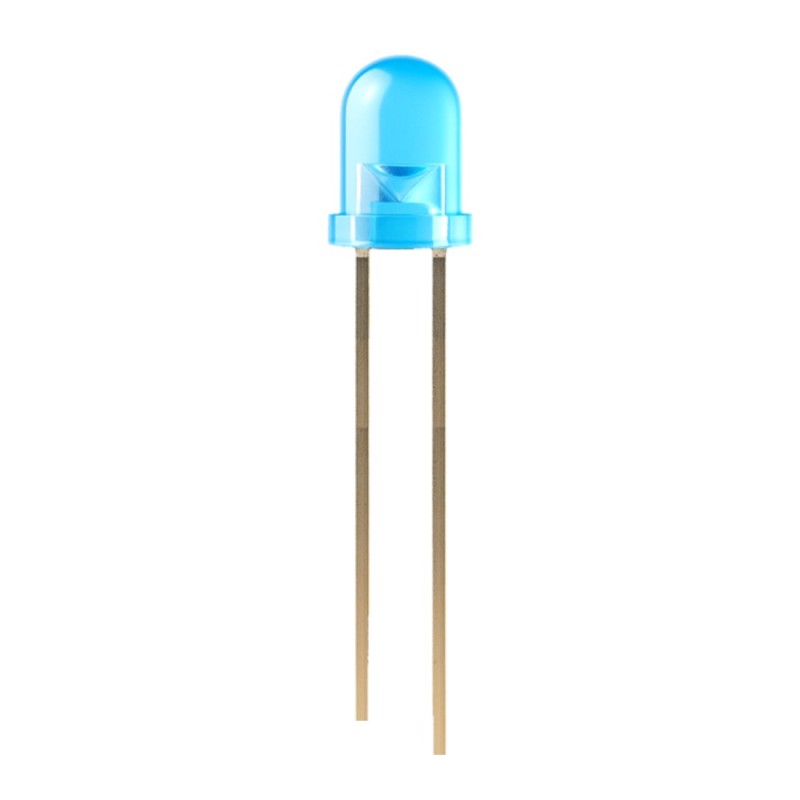

This Infrared Emitting Diode is a high intensity diode; molded in a blue plastic package. The device is spectrally matched with phototransistor; photodiode and infrared receiver module.

Features

  • High reliability.
  • High radiant intensity.
  • Peak wavelength λp=940nm.
  • 2.54mm Lead spacing.
  • Low forward voltage.
  • Pb Free.
  • This product itself will remain within RoHS compliant version.
  • Compliance with EU REACH.
  • Compliance Halogen Free(Br < 900ppm; Cl < 900ppm; Br+Cl < 1500ppm).

Applications

  • Free Air Transmission System.
  • Infrared Remote Control Units With High Power Requirement.
  • Smoke Detector.
  • Infrared Applied System.
IR204-A-L
Lens Color
Blue
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Beam Angle
35°
Package
3mm Round Lamp
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
940nm
Radiant Intensity
4 mW/sr
