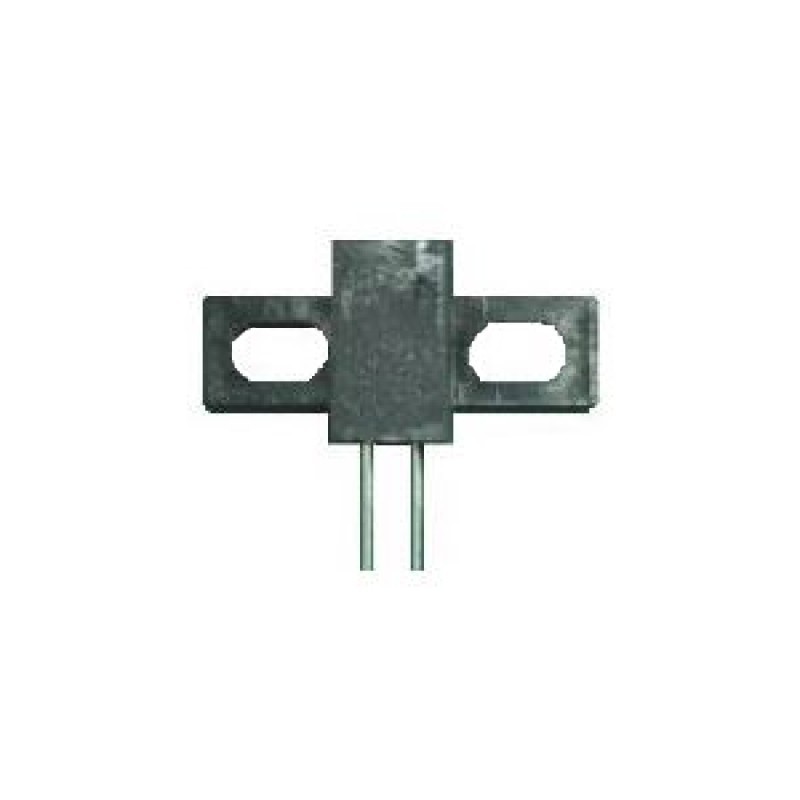

ITR20005-F

$1.50
Tax excluded

Description

The ITR20005-F consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing The phototransistor receives radiation from the IR LED only .This is the normal situation. But when an object is in between, phototransistor could not receives the radiation. For additional component information , please refer to IR928-6C and PT928-6C.

Features

  • Fast response time
  • High analytic
  • Cut-off visible wavelength λp=940nm
  • High sensitivity
  • Pb free
  • This product itself will remain within RoHS compliant version
  • Compliance with EU REACH

Applications

  • Mouse Copier
  • Switch Scanner
  • Floppy Disk Driver
  • Non-Contact Switching
  • For Direct Board
ITR20005-F
Forward Current
20mA
Maximum Voltage
1.5V
Package
Through-Hole Module
Peak Wavelength
940nm
