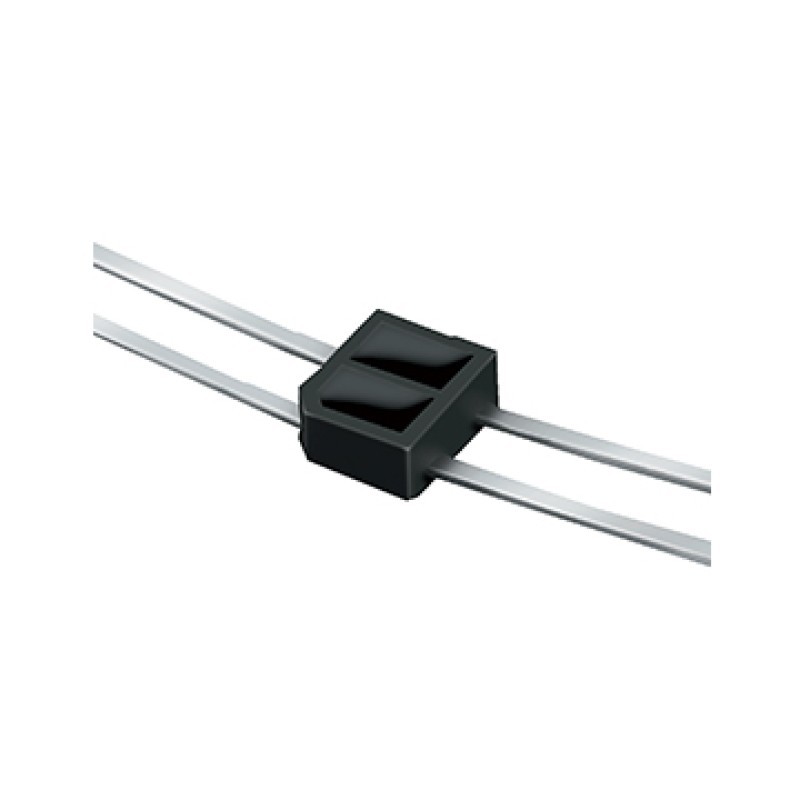

ITR8307/F43
$1.50
Tax excluded
Description
ITR8307/F43 is a light reflection switch which includes a GaAs IR-LED transmitter and a NPN photo-transistor with a high sensitive receiver for short distance, operating in the infrared range. Both components are mounted side- by- side in a plastic package.
Features
- Fast response time High sensitivity Cut-Off visible wavelength Thin Compact Pb free This product itself will remain within RoHS compliant version.
Applications
- Camera Vcr Floppy Disk Driver Cassette Type Recorder Various Microcomputer Control Equipment
ITR8307/F43
- Forward Current
- 20mA
- Forward Voltage
- 1.6V
- Maximum Voltage
- 1.6V
- Package
- Through-Hole Module
- Mounting
- Through Hole
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Peak Wavelength
- 940nm
