ITR8307/L24/TR8

$0.28
Tax excluded

Description

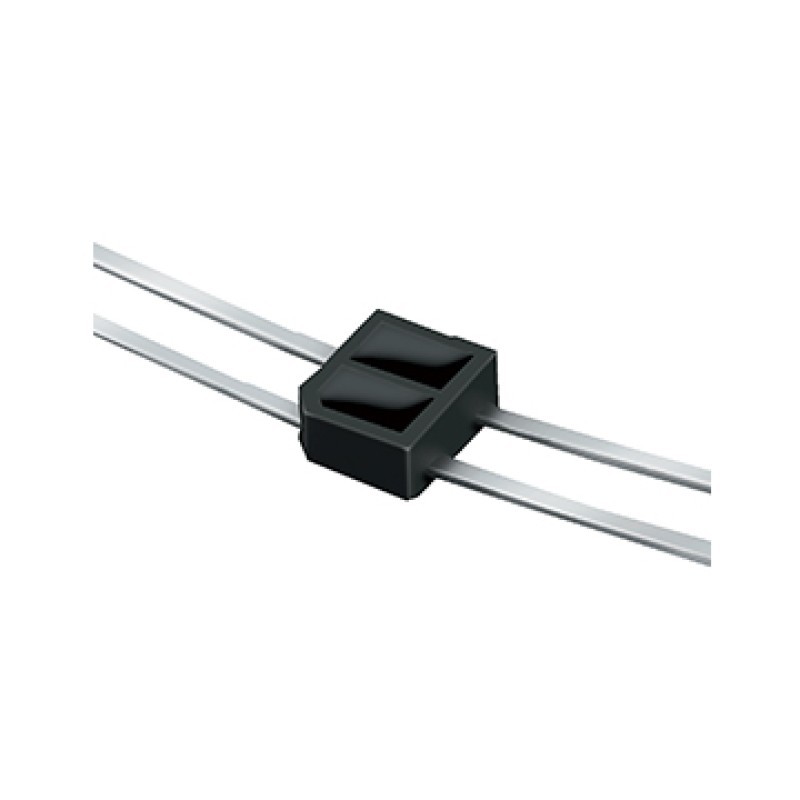

ITR8307-L24/TR8 is a light reflection switch which includes a GaAs IR-LED transmitter and a NPN photo-transistor with a high photosensitive receiver for short distance, operating in the infrared range. Both components are mounted side- by- side in a plastic package.

Features

  • Fast response time High sensitivity Cut-Off visible wavelength Thin Compact Pb free

Applications

  • Camera Vcr Floppy Disk Driver Cassette Type Recorder Various Microcomputer Control Equipment
ITR8307/L24/TR8
Forward Current
20mA
Forward Voltage
1.4V
Maximum Voltage
1.6V
Package
SMD Module
Mounting
SMD Gullwing
Operating Temperature
-25°C to 85°C
Storage Temperature
-30°C to 90°C
Peak Wavelength
940nm
