ITR20002

$1.50
Tax excluded

Description

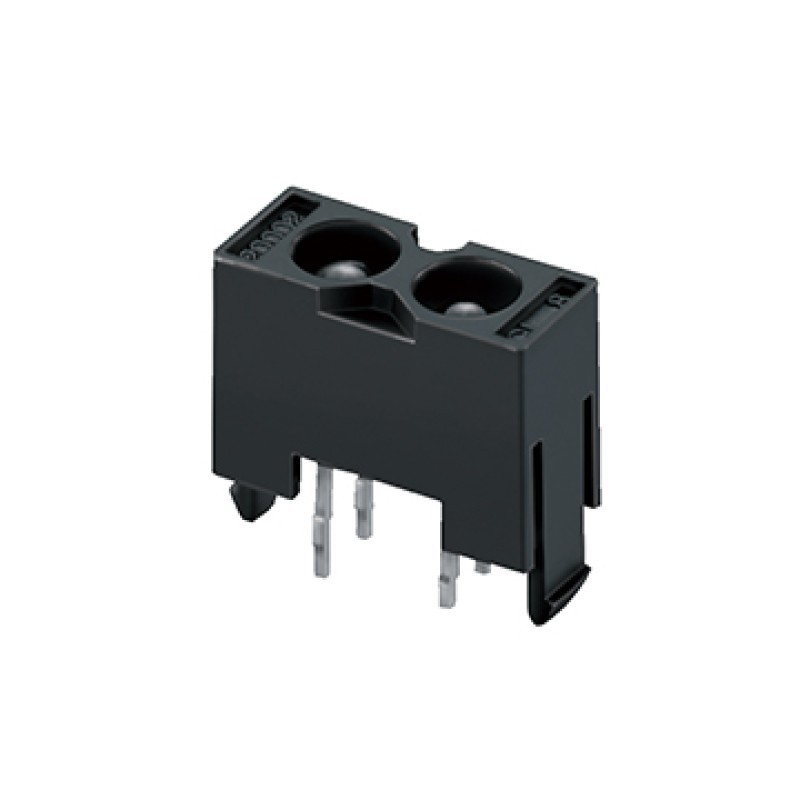

The ITR20002 consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing. The phototransistor receives radiation from the IR only . This is the normal situation. But when an object is in between . phototransistor could not receive radiation.

Features

  • Fast response time High analytic High sensitivity Cut-off visible wavelength λP=940nm Pb Free This product itself will remain within RoHS compliant version.

Applications

  • Mouse Copier Switch Scanner Floppy Disk Driver Non-Contact Switching For Direct Board
ITR20002
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Package
Through-Hole Module
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 85°C
Peak Wavelength
940nm
