ITR9606-F

$1.50
Tax excluded

Description

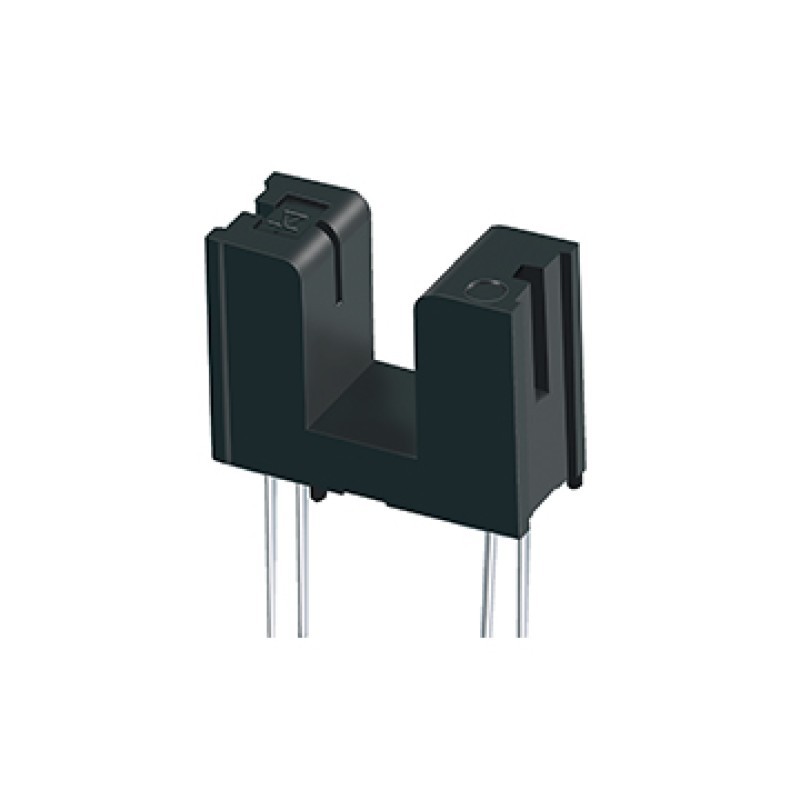

The ITR9606-F consist of an infrared emitting diode and an silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing, The phototransistor receives radiation from the IR LED only .This is the normal situation. But when an object is in between , phototransistor could not receives the radiation. For additional component information , please refer to IR928-6C-F and PT928-6C-F.

Features

  • Fast response time High analytic High sensitivity Cut-off visible wavelength λP=940nm Pb Free This product itself will remain within RoHS compliant version.

Applications

  • Mouse Copier Switch Scanner Floppy Disk Driver Non-Contact Switching For Direct Board
ITR9606-F
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Package
Through-Hole Module
Mounting
Through Hole
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 85°C
Peak Wavelength
940nm
