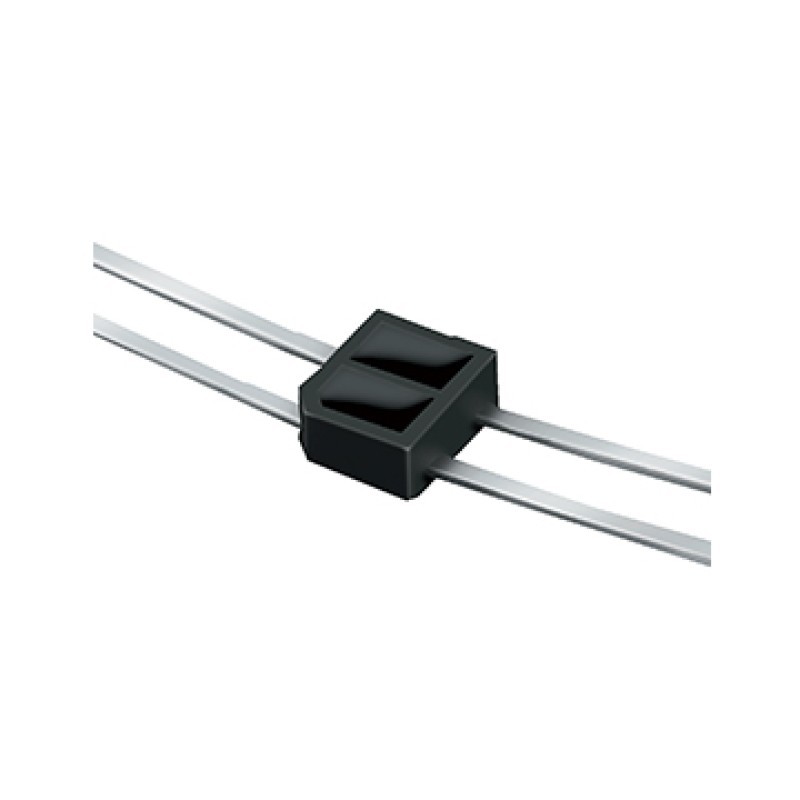

ITR8307
$1.50
Tax excluded
Description
The ITR8307 consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing The phototransistor receives radiation from the IR only .This is the normal situation. But when an object is in between, phototransistor could not receive the radiation.
Features
- Fast response time High sensitivity Cut-Off visible wavelength Thin Compact Pb free
Applications
- Camera Vcr Floppy Disk Driver Cassette Type Recorder Various Microcomputer Control Equipment
ITR8307
- Forward Current
- 20mA
- Forward Voltage
- 1.6V
- Maximum Voltage
- 1.6V
- Beam Angle
- 30°
- Package
- SMD Module
- Mounting
- Through Hole
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -30°C to 90°C
- Peak Wavelength
- 940nm
