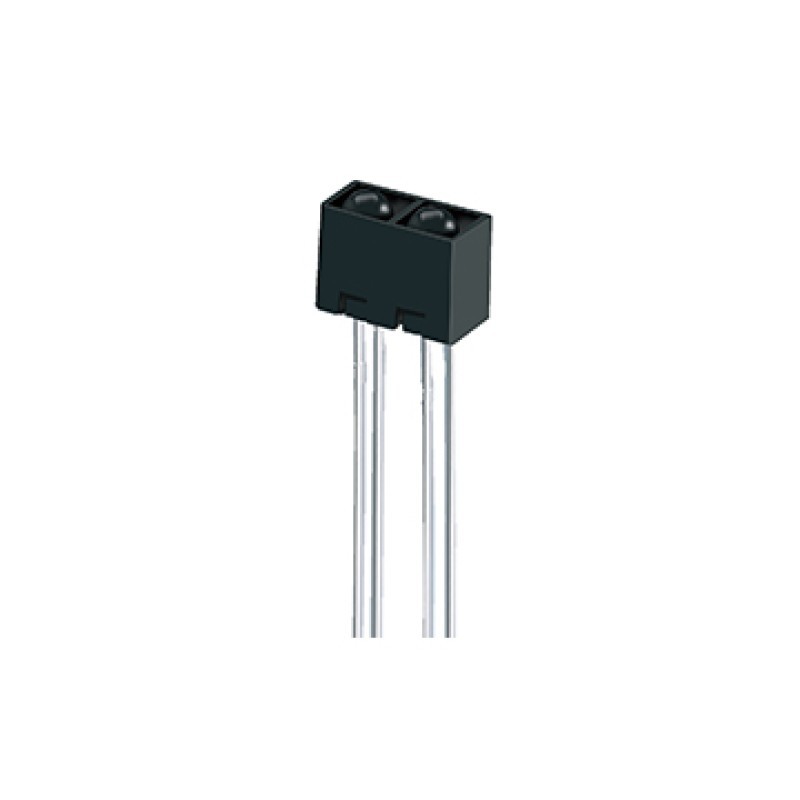

ITR9909
$1.50
Tax excluded
Description
The ITR9909consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing, The phototransistor receives radiation from the IR only .This is the normal situation. But when an object is in between , phototransistor could not receives the radiation. For additional component information , please refer to IR and PT.
Features
- Fast response time High analytic High sensitivity Cut-off visible wavelength λP=940nm Pb Free This product itself will remain within RoHS compliant version.
Applications
- Mouse Copier Switch Scanner Floppy Disk Driver Non-Contact Switching For Direct Board
ITR9909
- Forward Current
- 20mA
- Forward Voltage
- 1.5V
- Maximum Voltage
- 1.5V
- Package
- Through-Hole Module
- Mounting
- Through Hole
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Peak Wavelength
- 940nm
