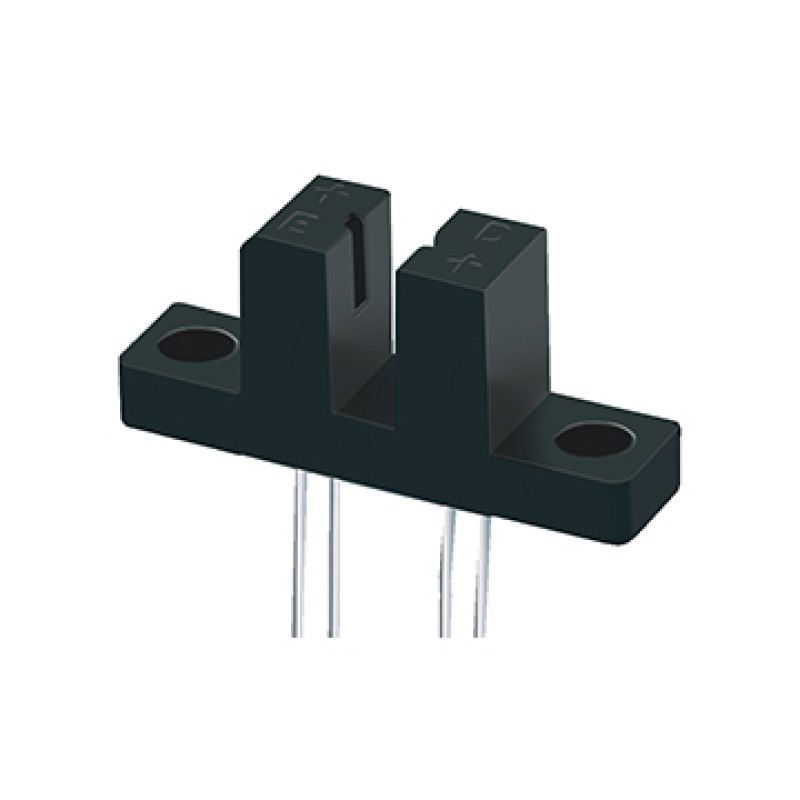

ITR8102
$1.50
Tax excluded
Description
The ITR8102 consist of an infrared emitting diode and a silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing The phototransistor receives radiation from the IR LED only .This is the normal situation. When an object is in between, phototransistor could not receives the radiation. For additional component information, please refer to IR908-7C and PT908-7C.
Features
- Fast response time High analytic High sensitivity Cut-off visible wavelength λP=940nm Pb Free This product itself will remain within RoHS compliant version.
Applications
- Mouse Copier Switch Scanner Floppy Disk Driver Non-Contact Switching For Direct Board
ITR8102
- Forward Current
- 20mA
- Forward Voltage
- 1.5V
- Maximum Voltage
- 1.6V
- Package
- Through-Hole Module
- Mounting
- Through Hole
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Peak Wavelength
- 940nm
