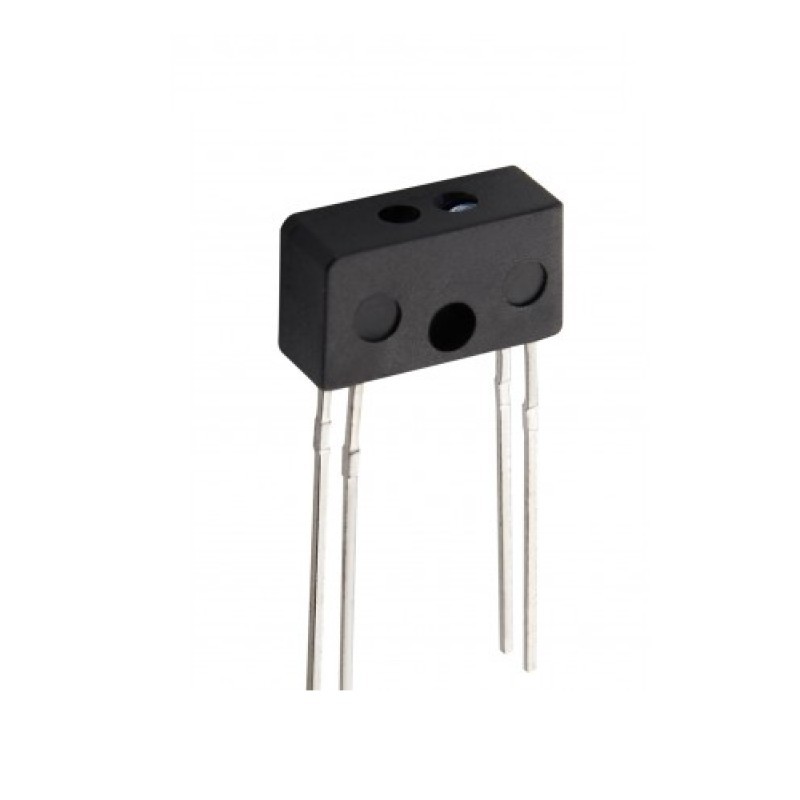

ITR9904

$1.50
Tax excluded

Description

ITR9904 is integrated of infrared emitting diode and NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing, the interrupter can be used as a switch when receiver part is obscured by objects.

Features

  • Fast response time High analytic High sensitivity Cut-off visible wavelength λP=940nm Pb Free This product itself will remain within RoHS compliant version.

Applications

  • Copier Scanner Non-Contact Switching For Direct Pc Board
ITR9904
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Package
Through-Hole Module
Mounting
Through Hole
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 85°C
Peak Wavelength
940nm
