ITR20403

$1.50
Tax excluded

Description

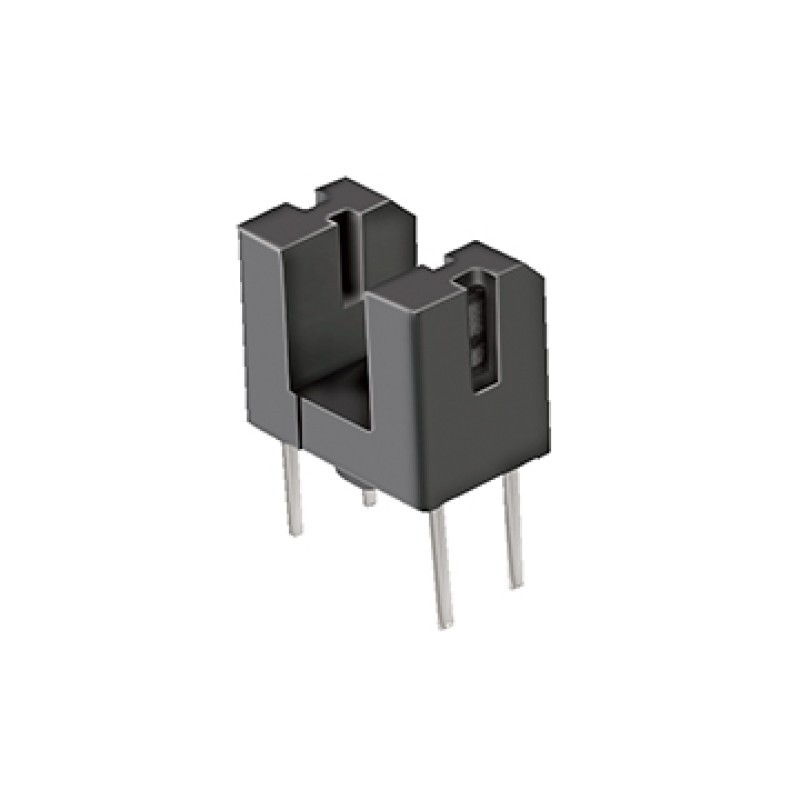

The ITR20403 consists of an infrared emitting diode and a silicon phototransistor encased in a black thermo-plastic housing. The advantage of the device is the small package. Phototransistor receives radiation from the IR LED only, and avoids the noise from ambient light.

Features

  • Fast response time High analytic High sensitivity Cut-off visible wavelength λP=940nm Pb Free This product itself will remain within RoHS compliant version.

Applications

  • Camera Copier Scanner Non-Contact Switching
ITR20403
Forward Voltage
1.6V
Package
Through-Hole Module
Mounting
Through Hole
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 85°C
Peak Wavelength
940nm
