ITR8402-F-A
search
  • ITR8402-F-A
  • ITR8402-F-A
  • ITR8402-F-A
  • ITR8402-F-A

ITR8402-F-A

$1.50
Tax excluded

Description

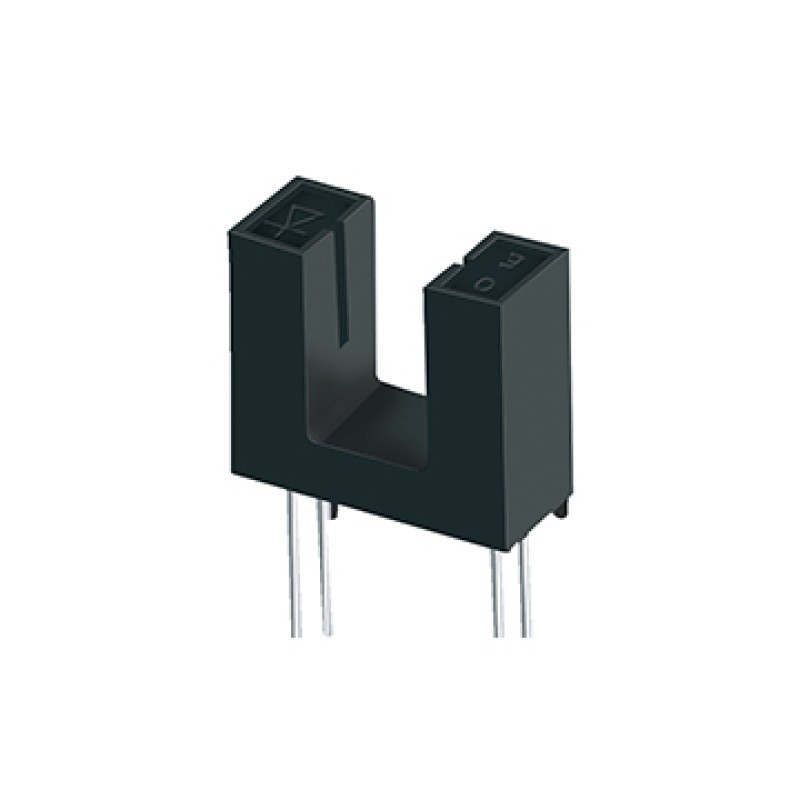

The ITR8402-F-A consist of an infrared emitting diode and an silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing, The phototransistor receives radiation from the IR LED only .This is the normal situation. But when an object is in between phototransistor could not receives the radiation. For additional component information , please refer to IR908-7C and PT908-7C.

Features

  • Fast response time High analytic High sensitivity Cut-off visible wavelength λP=940nm Pb Free This product itself will remain within RoHS compliant version.

Applications

  • Mouse Copier Switch Scanner Floppy Disk Driver Non-Contact Switching For Direct Board
ITR8402-F-A
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Package
Through-Hole Module
Mounting
Through Hole
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 85°C
Peak Wavelength
940nm
