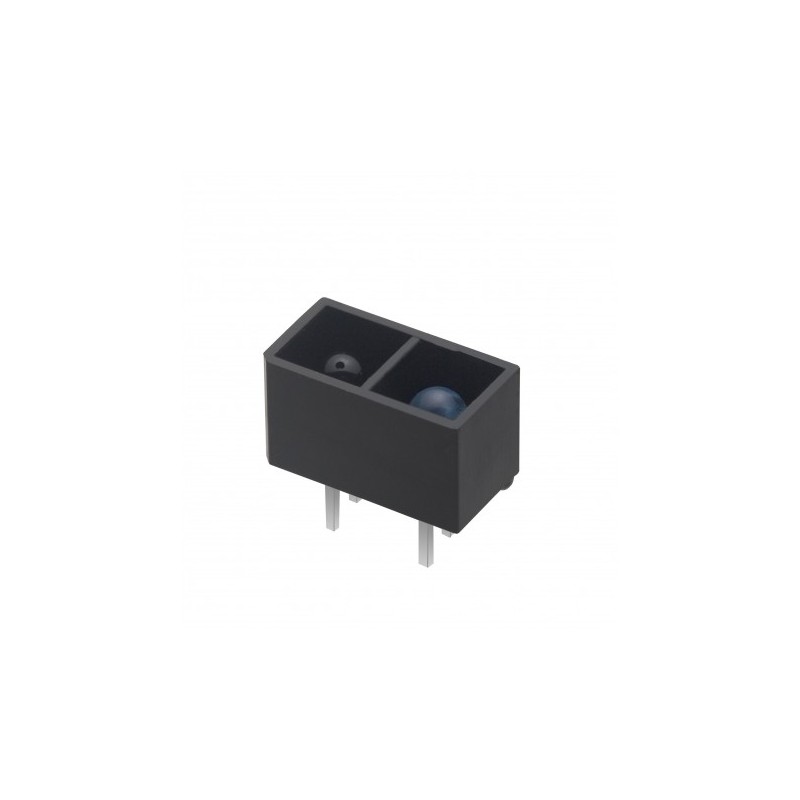

ITR9908

$0.40

Tax excluded

Description
Product Details

Description

This part consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black Thermoplastic Housing. The phototransistor receives radiation from the IR LED only .This is the normal Situation. But when an object is in between , phototransistor could not receives the radiation. For additional component information , please refer to IR204 and PT204-6B.

Features

Fast response time High analytic High sensitivity Cut-off visible wavelength λP=940nm Pb Free This product itself will remain within RoHS compliant version.

Applications

Mouse Copier Switch Scanner Floppy Disk Driver Non-Contact Switching For Direct Board

Reference ITR9908

Forward Current: 20mA
Forward Voltage: 1.5V
Maximum Voltage: 1.5V
Beam Angle: 35°
Package: Through-Hole Module
Mounting: Through Hole
Operating Temperature: -25°C to 85°C
Storage Temperature: -40°C to 100°C
Peak Wavelength: 940nm
