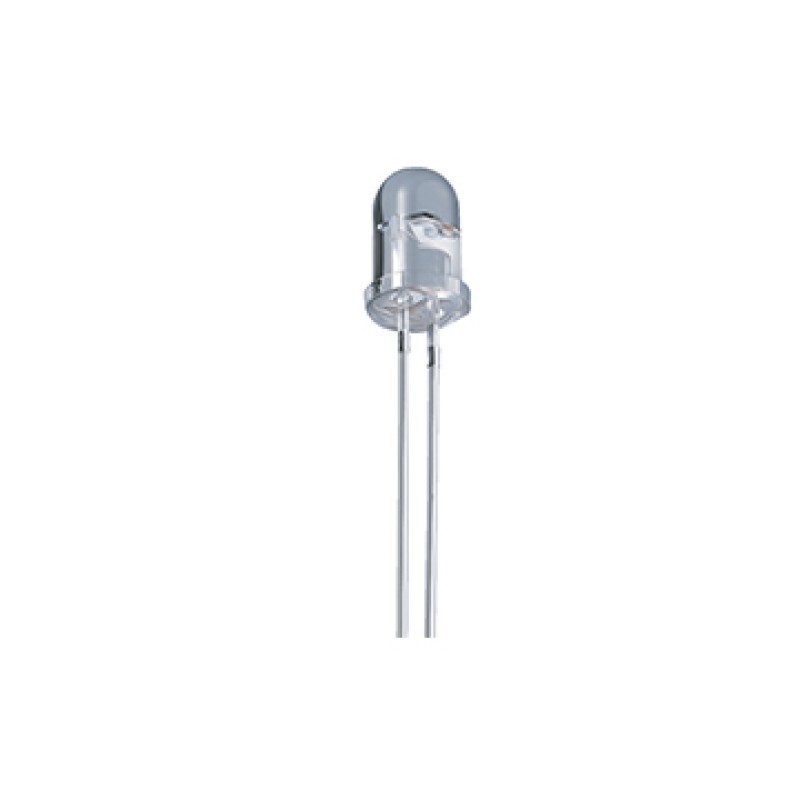

PD333-3C/H0/L2
$0.45
Tax excluded
Description
PD333-3C/H0/L2 is a high speed and high sensitive PIN photodiode in a standard 5Φ plastic package. Due to its water clear epoxy the device is sensitive to infrared radiation.
Features
- Fast response time High photo sensitivity Small junction capacitance Pb free This product itself will remain within RoHS compliant version.
Applications
- High Speed Photo Detector Security System Camera
PD333-3C/H0/L2
- Lens Color
- Transparent
- Package
- 5mm Round Lamp
- Mounting
- Through Hole
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Rise/Fall Time
- 45 / 45 ns
- Reverse Light Current
- 36 µA
