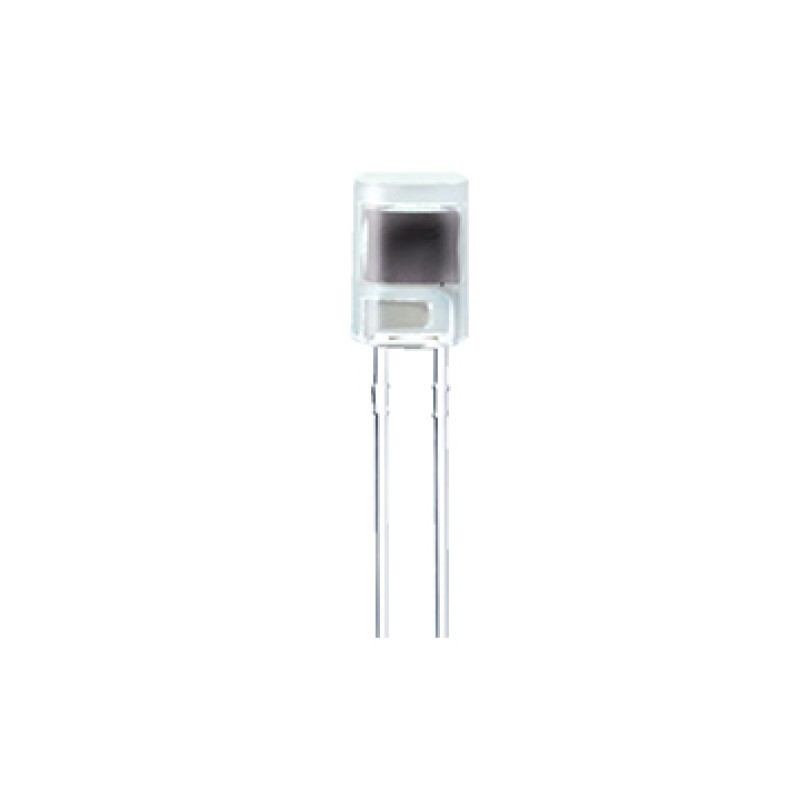

PD438C
$1.00
Tax excluded
Description
PD438C is a high speed and sensitive PIN photodiode in a cylindrical side view plastic package. The epoxy package itself is an IR filter , spectrally matched to IR emitter.
Features
- Fast response times High photo sensitivity Small junction capacitance Pb free The product itself will remain within RoHS compliant version.
Applications
- High Speed Photo Detector Camera Optoelectronic Switch Vcrs
- Video Camera
PD438C
- Lens Color
- Transparent
- Package
- SideView Lamp
- Mounting
- Through Hole
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Rise/Fall Time
- 50 / 50 ns
- Reverse Light Current
- 18 µA
