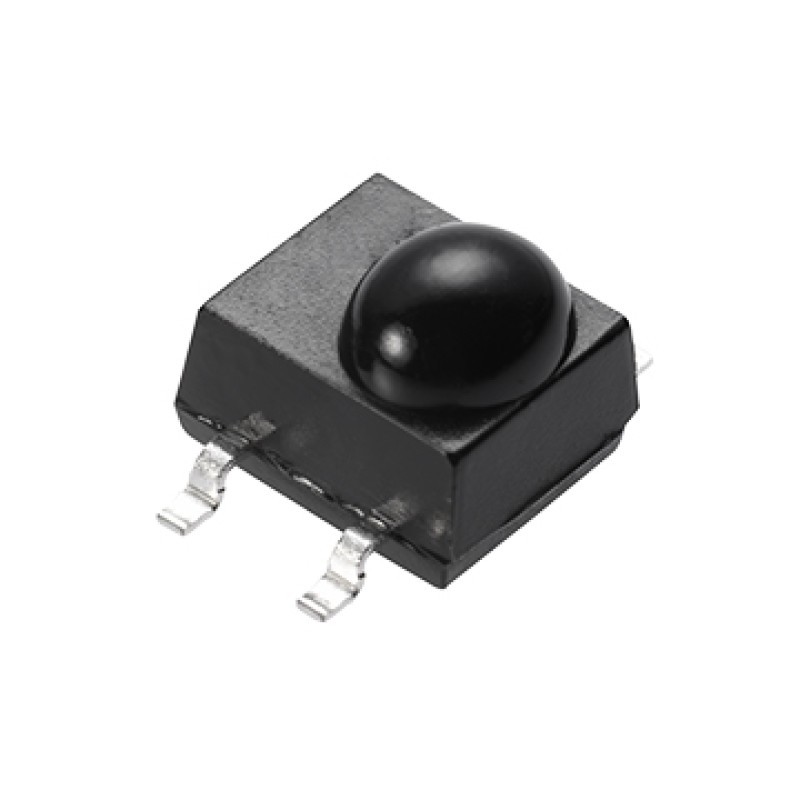

IRM-H638T/TR2

$0.88

Tax excluded

Description
Product Details

Description

The device is miniature SMD type infrared receiver that has been developed and designed by utilizing the latest IC technology. The PIN diode and preamplifier are assembled onto a lead frame and molded into an epoxy package which operates as an IR filter. The demodulated output signal can directly be decoded by a microprocessor.

Features

High shielding against electric field disturbance.
Circular lens to improve the receive characteristic.
Line-up for various center carrier frequencies.
Low voltage and low power consumption.
High immunity against ambient light.
Photodiode with integrated circuit.
TTL and CMOS compatibility.
Top-received SMD.
Suitable burst length ≧10 pulses/burst.
This product itself will remain within RoHS compliant version.
Pb free.
External dimensions 5(...

Reference IRM-H638T/TR2

Lens Color: Black
Forward Current: 0.4mA
Maximum Voltage: 5.5V
Beam Angle: 45°
Package: SMD Module
Mounting: SMD Gullwing
Operating Temperature: -20°C to 80°C
Storage Temperature: -40°C to 85°C
Peak Wavelength: 940nm
Number of Pins: Quad
