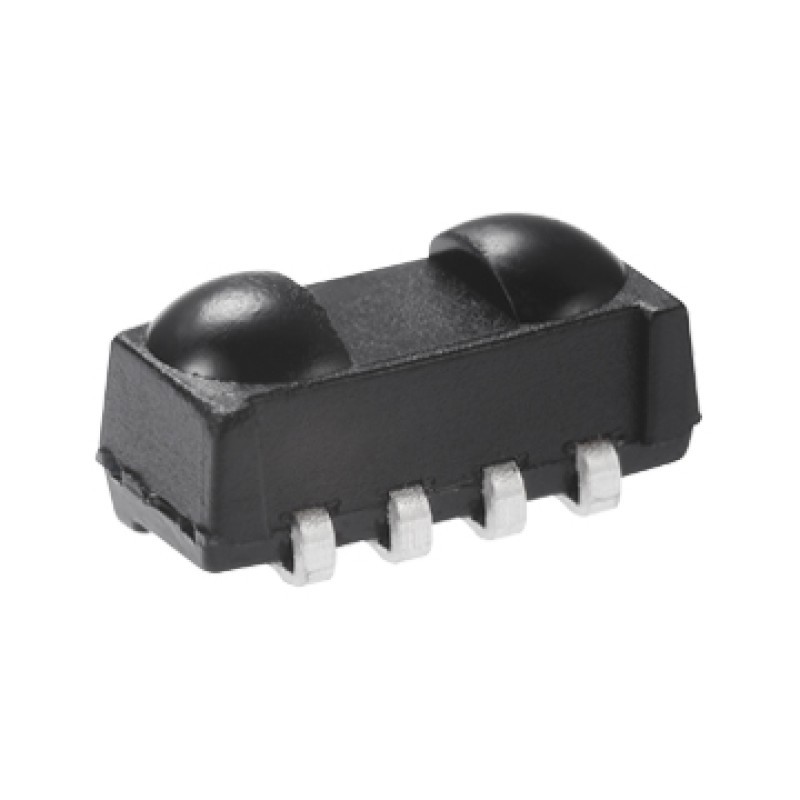

IRM-H836M3/TR2

$1.50

Tax excluded

Description
Product Details

Description

The device is miniature SMD type infrared receiver that has been developed and designed by utilizing the latest IC technology. The PIN diode and preamplifier are assembled onto a lead frame and molded into an epoxy package which operated an IR filter. The demodulated output signal can directly be decoded by a microprocessor.

Features

High protection ability against EMI
Available for various carrier frequencies
Min burst length: 8 cycles
Min gap length: 12 cycles
Low operating voltage and low power consumption
High immunity against ambient light
High immunity against TFT and PDP backlight
Long reception range
High sensitivity
Pb free and RoHS compliant
Compliance with EU REACH
Compliance Halogen Free .(Br <900 ppm ;Cl <900 ppm ; Br+Cl < 1500 ppm)

Reference IRM-H836M3/TR2

Lens Color: Black
Forward Current: 0.4mA
Maximum Voltage: 5.5V
Beam Angle: 45°
Package: SMD Module
Mounting: SMD
Operating Temperature: -20°C to 80°C
Storage Temperature: -40°C to 85°C
Peak Wavelength: 940nm
Number of Pins: Quad
