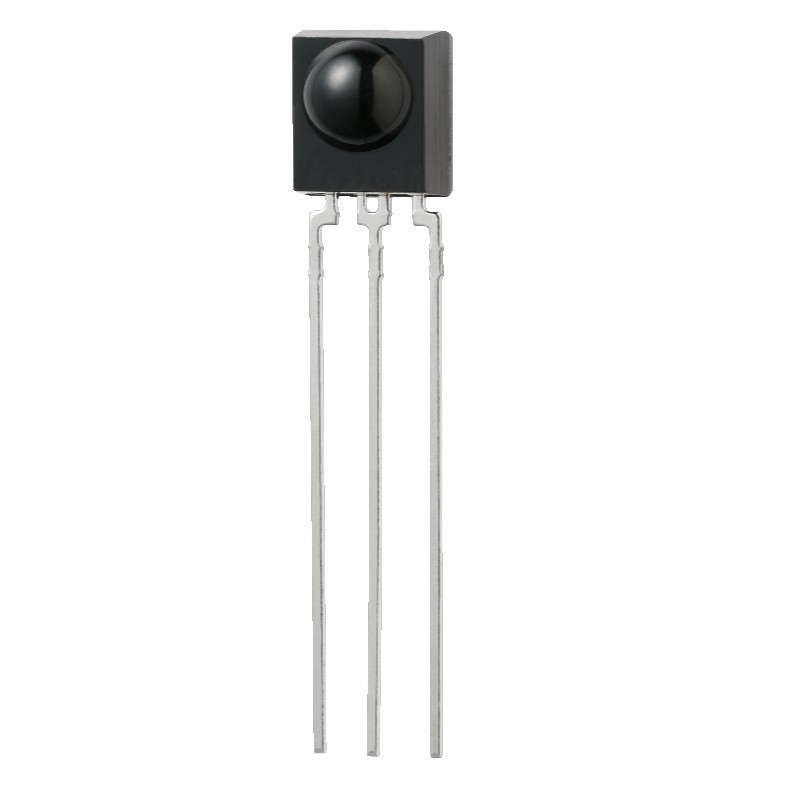

IRM-3638T

$1.50

Tax excluded

Description
Product Details

Description

The IRM-36XXT devices are DIP type infrared receivers which have been developed and designed by using the latest IC technology. The PIN diode and preamplifier are assembled onto a lead frame and molded into a black epoxy package which operates as an IR filter. The demodulated output signal can directly be decoded by a microprocessor.

Features

High protection ability against EMI.
Circular lens to improve the receive characteristic.
Line-up for various center carrier frequencies.
Low voltage and low power consumption.
High immunity against ambient light.
Photodiode with integrated circuit.
TTL and CMOS compatibility.
Long reception distance.
High sensitivity.
Pb free and RoHS compliant.

Applications

Light Detecting Porti...

Reference IRM-3638T

Lens Color: Water Clear
Forward Current: 0.7mA
Maximum Voltage: 5.5V
Beam Angle: 45°
Package: Through-Hole Module
Mounting: Through Hole
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 100°C
Peak Wavelength: 940nm
