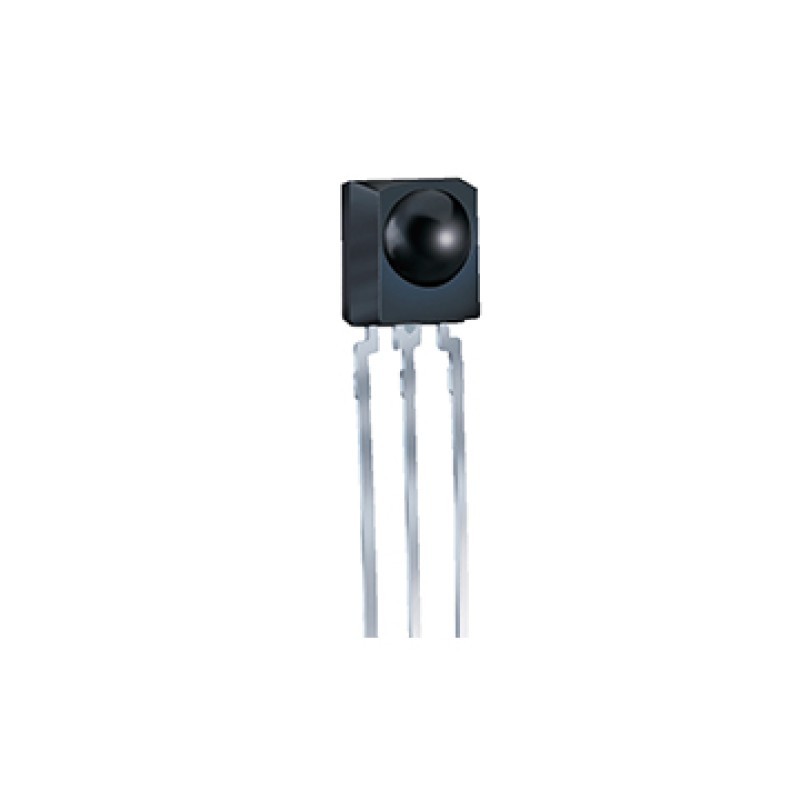

IRM-3638M3

$1.50

Tax excluded

Description
Product Details

Description

The IRM-36xxM3 devices are DIP type infrared receivers which have been developed and designed by using the latest IC technology, providing compatibility to most common IR protocols. The PIN diode and preamplifier are assembled onto a lead frame and molded into a black epoxy package which operates as an IR filter. The demodulated output signal can directly be decoded by a microprocessor.

Features

Circular lens for improved reception characteristics
Available for various carrier frequencies
Low operating voltage and low power consumption
Optimized immunity against TFT backlight interferences
High immunity against ambient light
Long reception range
High sensitivity
Pb free and RoHS compliant
Compliance with EU REACH
Compliance Halogen Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)

Reference IRM-3638M3

Lens Color: Water Clear
Forward Current: 0.1mA
Maximum Voltage: 5.5V
Beam Angle: 45°
Package: Through-Hole Module
Mounting: Through Hole
Operating Temperature: -20°C to 85°C
Storage Temperature: -40°C to 85°C
Peak Wavelength: 940nm
