IRM-3636JT

$1.50
Tax excluded

Description

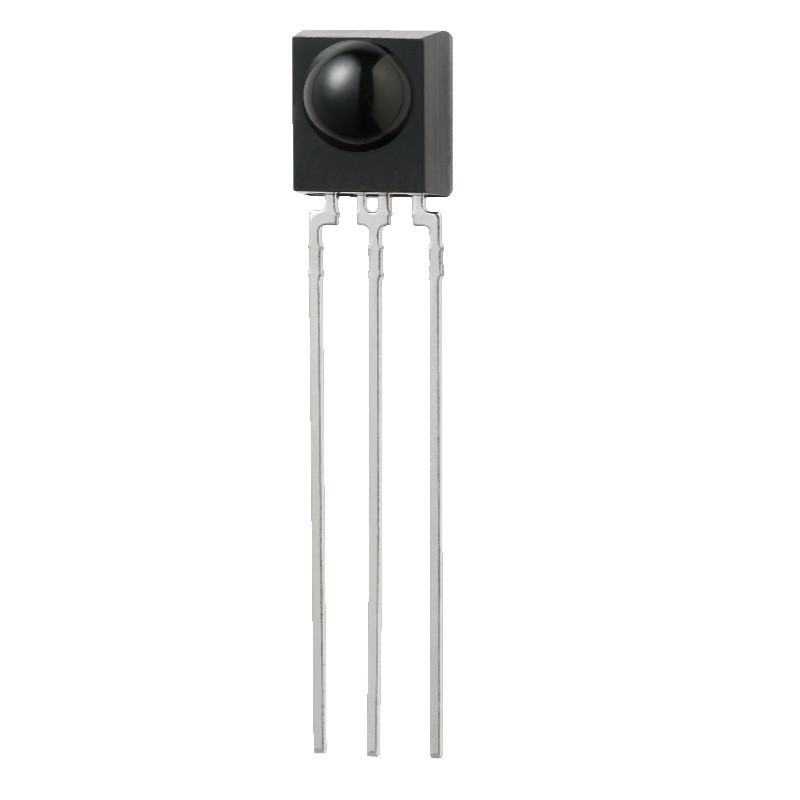

The IRM-36xxJT devices are DIP type infrared receivers which have been developed and designed by using the latest IC technology, providing compatibility to most common IR protocols. The PIN diode and preamplifier are assembled onto a lead frame and molded into a black epoxy package which operates as an IR filter. The demodulated output signal can directly be decoded by a microprocessor.

Features

  •  Circular lens for improved reception characteristics  Available for various carrier frequencies  Low operating voltage and low power consumption  Optimized immunity against TFT backlight interferences  High immunity against ambient light  Long reception range  High sensitivity  Pb free and RoHS compliant  Compliance with EU REACH  Compliance Halogen Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)

Applicat...

IRM-3636JT
Forward Current
0.6mA
Maximum Voltage
5.5V
Beam Angle
45°
Package
Through-Hole Module
Peak Wavelength
940nm
