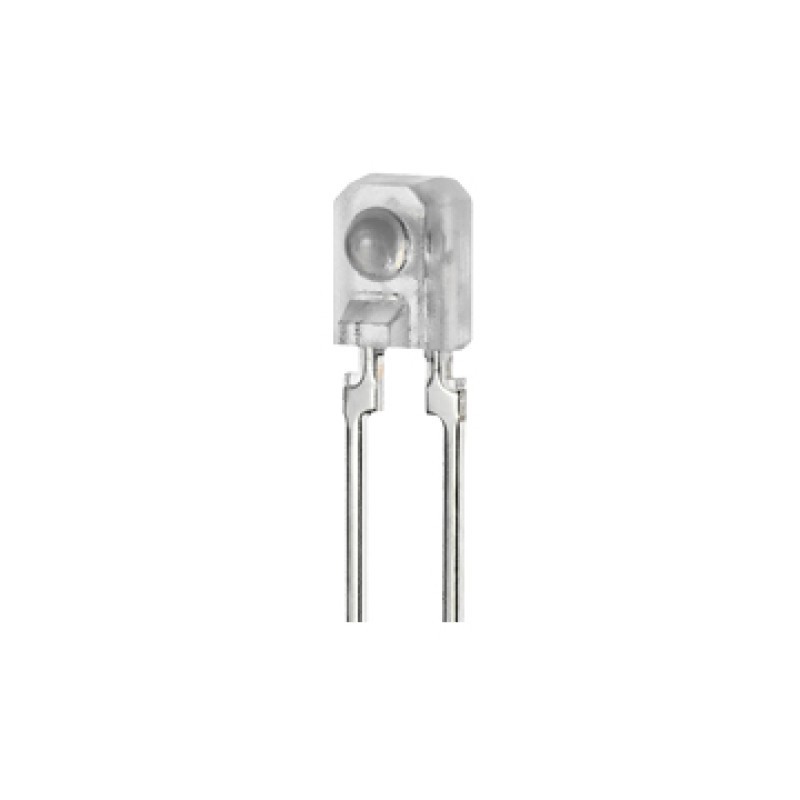

IR968-8C
$0.45
Tax excluded
Description
The IR968-8C is a GaAs infrared emitting diode. The miniature side-facing device is a chip that emits radiation from the side of the clear package.
Features
- Low forward voltage Peak wavelength λp=940nm High reliability Pb Free This product itself will remain within RoHS compliant version. Compliance with EU REACH Compliance Halogen Free (Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm)
Applications
- Automatic Stroboscope Cassette Type Recorder Optoelectronic Switch Photo Interrupter
IR968-8C
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.2V
- Maximum Voltage
- 1.5V
- Beam Angle
- 25°
- Package
- SideView Lamp
- Mounting
- Through Hole
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Peak Wavelength
- 940nm
