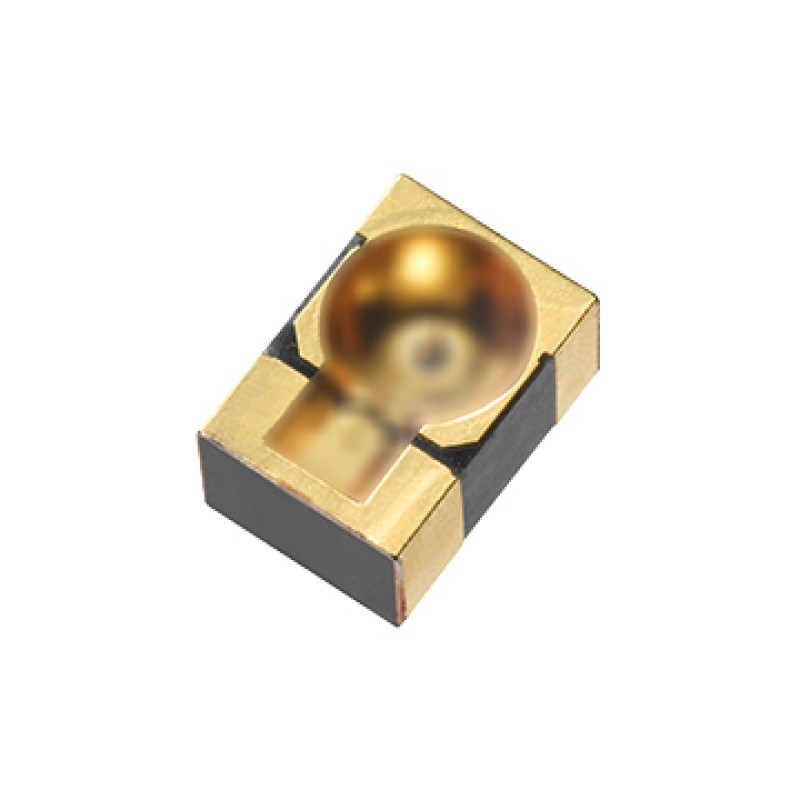

HIR89-01C/1R
$0.61
Tax excluded
Description
HIR89-01C/1R is an infrared emitting diode with miniature MIDLED package. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Low forward voltage. View angle 30° (Typ.) Pb free The product itself will remain within RoHS compliant version Compatible with infrared and vapor phase reflow solder process Taping as Top view.
Applications
- Infrared Applied System
HIR89-01C/1R
- Lens Color
- Water Clear
- Forward Current
- 70mA
- Forward Voltage
- 1.7V
- Maximum Voltage
- 1.9V
- Pulsed Forward Current
- 200mA
- Beam Angle
- 30°
- Package
- 3122
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 1.6mm
- Peak Wavelength
- 850nm
- Radiant Intensity
- 40 mW/sr
