HIR83-01B/TR8
$0.41
Tax excluded
Description

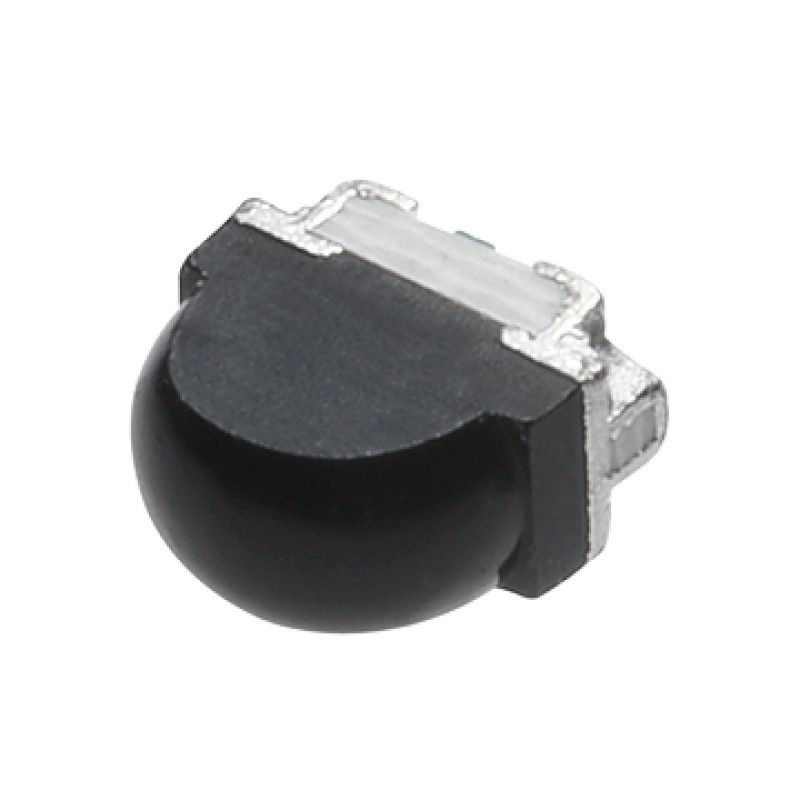

HIR83-01B/TR8 is an infrared emitting diode in miniature SMD package which is molded in a black plastic with semicircle and top view lens. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Peak wavelength λp=850nm
- Low forward voltage
- Pb free
- The product itself will remain within RoHS compliant version.
Applications
- Infrared Applied System
HIR83-01B/TR8
- Lens Color
- Black
- Forward Current
- 20mA
- Forward Voltage
- 1.7V
- Maximum Voltage
- 1.7V
- Beam Angle
- 100 / 40°
- Package
- 1608
- Mounting
- SMD
- Operating Temperature
- -40°C to 100°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 1.52mm
- Peak Wavelength
- 850nm
- Radiant Intensity
- 2 mW/sr
