IR25-21C/2T

$0.45
Tax excluded

Description

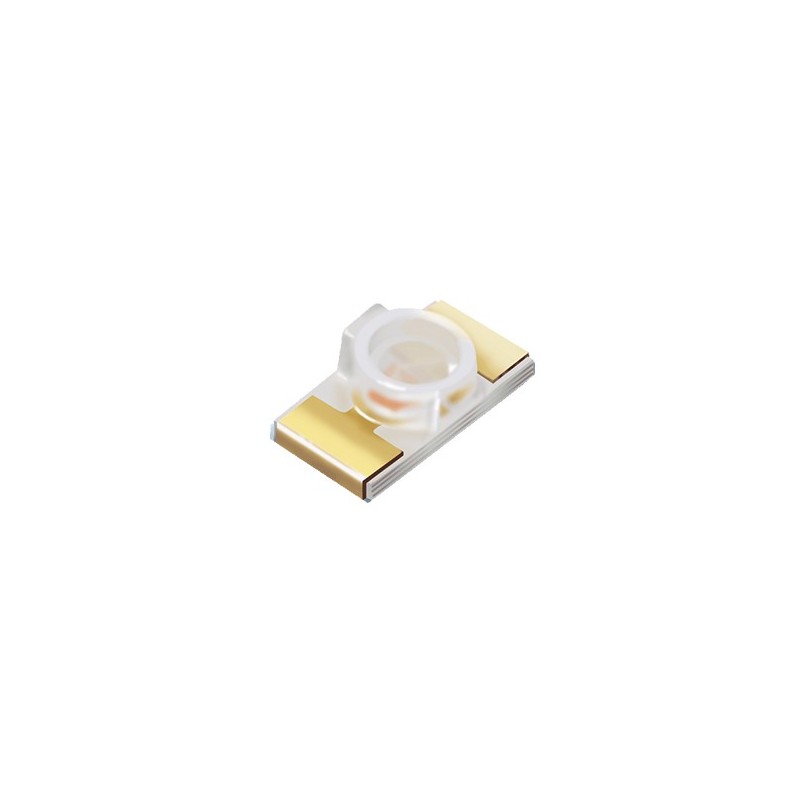

This is an infrared emitting diode in miniature SMD packagewhich is molded in a water clear plastic with flat top view lens. ․The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • Small double-end package Low forward voltage Good spectral matching to Si photo detector Package in 8mm tape on 7” diameter reel Pb free The product itself will remain within RoHS compliant version. Compliance with EU REACH Compliance Halogen Free.(Br<900 ppm,Cl<900 ppm,Br+Cl<1500 ppm)

Applications

  • Pcb Mounted Infrared Sensor Infrared Emitting For Miniature Light Barrier Hoppy Disk Drive Optoelectronic Switch Smoke Detector
IR25-21C/2T
Lens Color
Water Clear
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Beam Angle
160°
Package
1206
Mounting
SMD
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 85°C
Thickness
1.1mm
Peak Wavelength
940nm
Radiant Intensity
0.5 mW/sr
