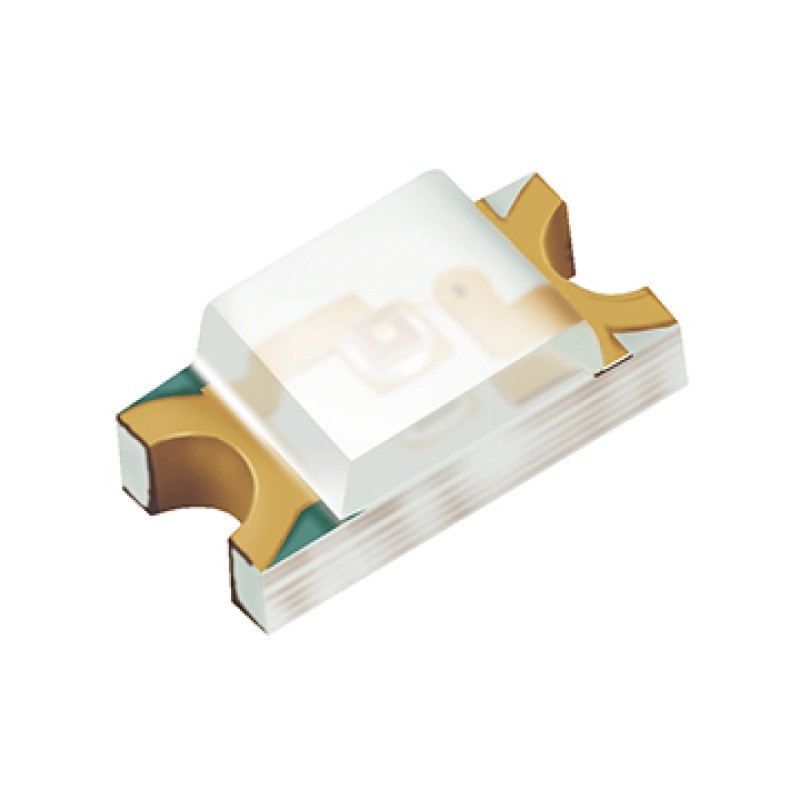

IR15-21C/TR8
$0.45
Tax excluded
Description
s: This part is an infrared emitting diode in miniature top view flat SMD package and it is molded in a water clear plastic. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Small double-end package High reliability Low forward voltage Good spectral matching to Si photodetector Pb free The product itself will remain within RoHS compliant version.
Applications
- Pcb Mounted Infrared Sensor Infrared Emitting For Miniature Light Barrier Floppy Disk Drive Optoelectronic Switch Smoke Detector
IR15-21C/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.5V
- Maximum Voltage
- 1.5V
- Beam Angle
- 180°
- Package
- 1206
- Mounting
- SMD
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Thickness
- 1.1mm
- Peak Wavelength
- 940nm
- Radiant Intensity
- 0.2 mW/sr
