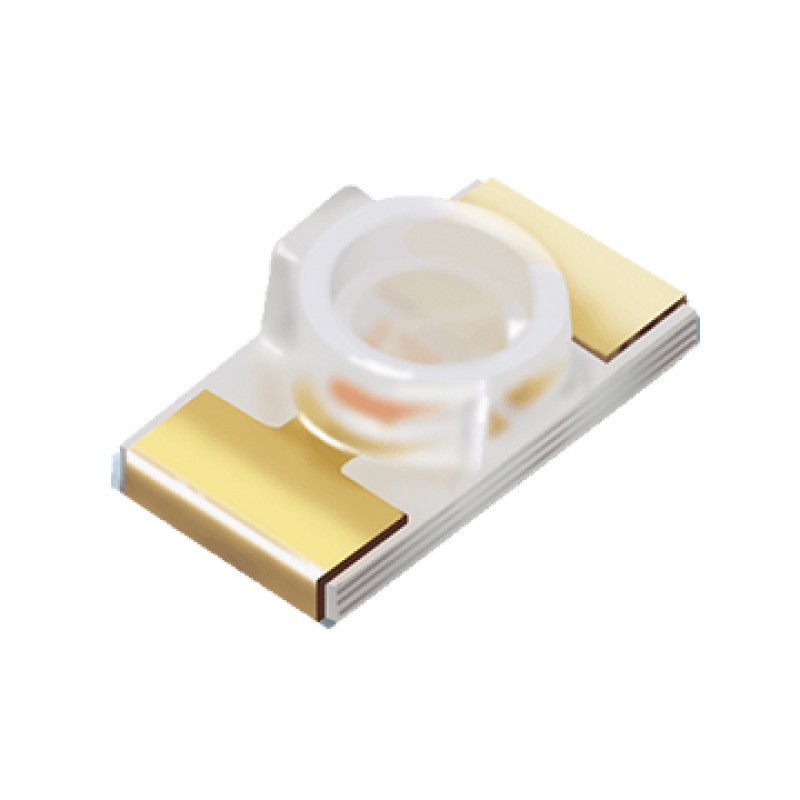

IR25-21C/TR8
$0.45
Tax excluded
Description
This part is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Small double-end package
- Low forward voltage
- Good spectral matching to Si photo detector
- Package in 8mm tape on 7〞diameter reel.
- Pb free
- The product itself will remain within RoHS compliant version.
Applications
- Pcb Mounted Infrared Sensor
- Infrared Remote Control Units With High Power Requirement
- Scanner
- Infrared Applied System
IR25-21C/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.2V
- Maximum Voltage
- 1.5V
- Beam Angle
- 160°
- Package
- 1026
- Mounting
- SMD
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Thickness
- 1.1mm
- Peak Wavelength
- 940nm
- Radiant Intensity
- 0.5 mW/sr
