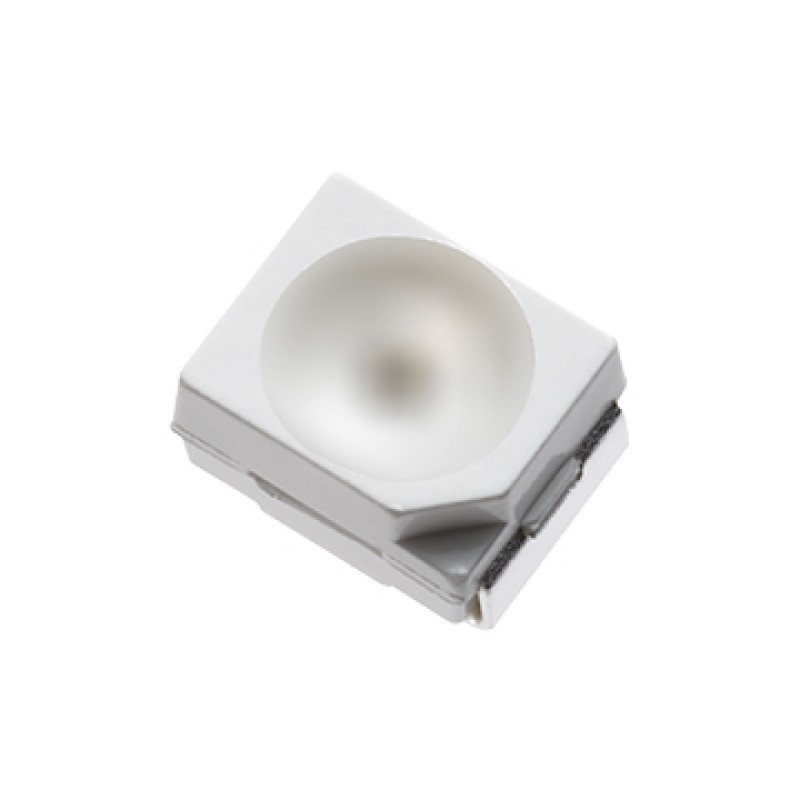

IR67-21C/TR8
$1.50
Tax excluded
Description
IR67-21C/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Compatible with infrared and vapor phase reflow solder process.
- Low forward voltage.
- View angle 120°
- Pb free
- The product itself will remain within RoHS compliant version.
Applications
- Sensor
- Optoelectronic Switch
- Camera
- Vcr
- Video
- Smoke Detector
IR67-21C/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.2V
- Maximum Voltage
- 1.5V
- Pulsed Forward Current
- 1000mA
- Beam Angle
- 120°
- Package
- 3528
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 1.8mm
- Peak Wavelength
- 940nm
- Radiant Intensity
- 1 mW/sr
