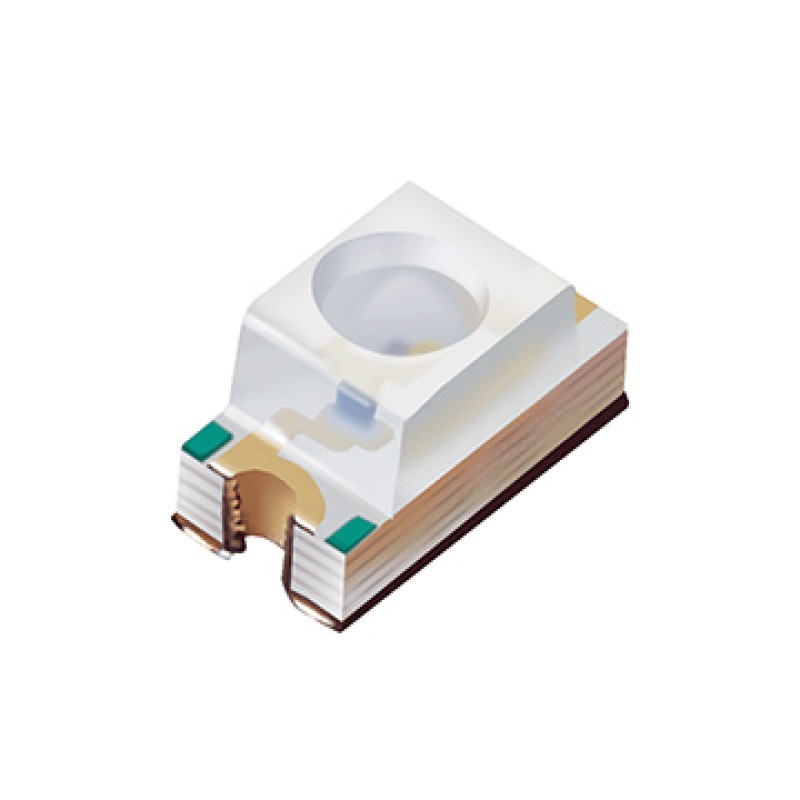

HIR11-21C/L11/TR8
$0.45
Tax excluded
Description
s: This part is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- High reliability Small double-end package Peak wavelength λp=850nm Package in 8mm tape on 7” diameter reel Low forward voltage Pb free The product itself will remain within RoHS compliant version. Compliance with EU REACH
Applications
- Pcb Mounted Infrared Sensor Infrared Remote Control Units With High Power Requirement Smoke Detector Infrared Applied System
HIR11-21C/L11/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.65V
- Maximum Voltage
- 1.65V
- Pulsed Forward Current
- 1000mA
- Beam Angle
- 80°
- Package
- 1206
- Mounting
- SMD
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 1.5mm
- Peak Wavelength
- 850nm
- Radiant Intensity
- 1 mW/sr
