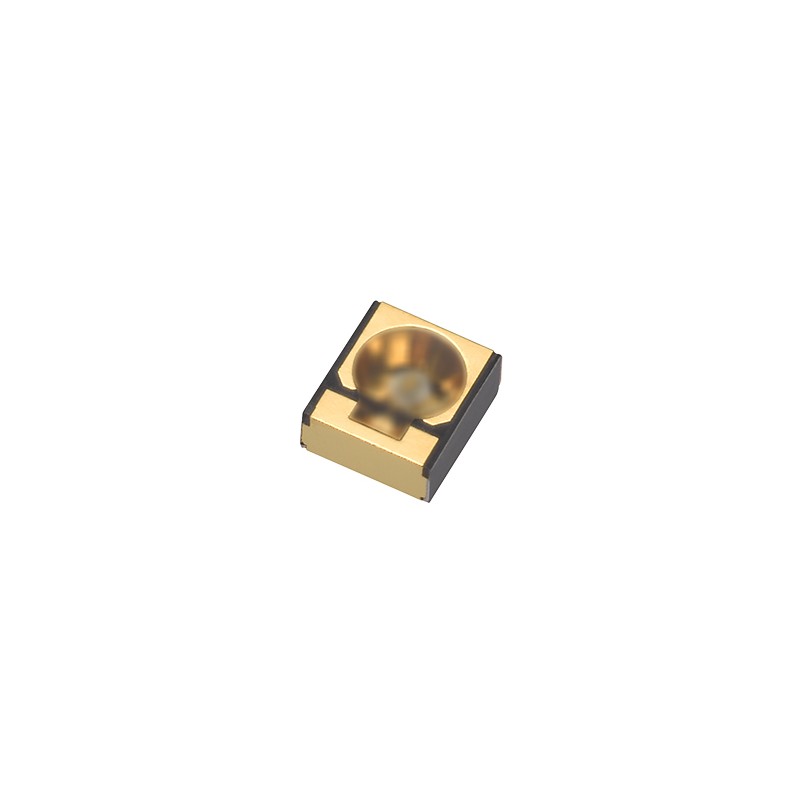

HIR91-01C/L297/2T
$0.45
Tax excluded
Description
HIR91-01C/L297/2T is an infrared emitting diode with miniature MIDLED package. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Low forward voltage. View angle 40° (Typ.). Pb free. The product itself will remain within RoHS compliant version. Compatible with infrared and vapor phase reflow solder process. Taping as Top view.
Applications
- Infrared Applied System
HIR91-01C/L297/2T
- Lens Color
- Water Clear
- Forward Current
- 70mA
- Forward Voltage
- 1.7V
- Maximum Voltage
- 2.0V
- Pulsed Forward Current
- 200mA
- Beam Angle
- 40°
- Package
- 2219
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 0.8mm
- Peak Wavelength
- 850nm
- Radiant Intensity
- 25 mW/sr
