HIR17-21C/L289/TR8

$0.45
Tax excluded

Features

  • High reliability
  • Small double-end package
  • Peak wavelength λp=850nm
  • Package in 8mm tape on 7” diameter reel
  • Low forward voltage
  • Pb free
  • The product itself will remain within RoHS compliant version.
  • Compliance with EU REACH
  • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm). Descriptions

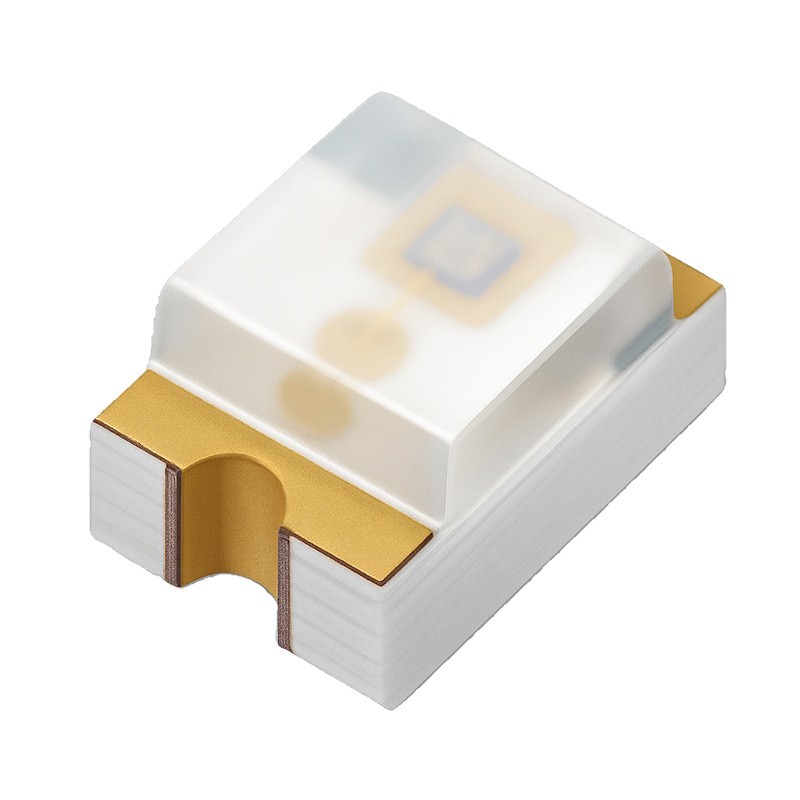

  • HIR17-21C/L289/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens.
  • The device is spectrally matched with silicon photodiode and phototransistor.

Applications

  • Pcb Mounted Infrared Sensor
  • Infrared Remote Control Units With High Power Requirement
  • Smoke Detector
  • Infrared Applied System
HIR17-21C/L289/TR8
Forward Current
20mA
Maximum Voltage
1.7V
Beam Angle
140°
Package
805
Peak Wavelength
850nm
Radiant Intensity
1.6 mW/sr
