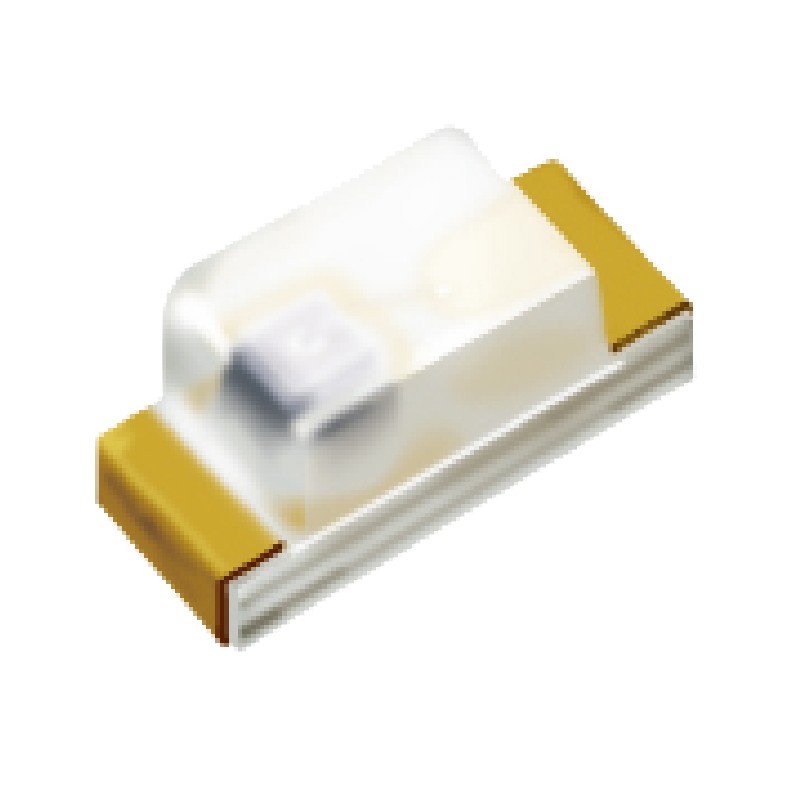

SIR19-315/TR8
$0.45
Tax excluded
Description
SIR19-315/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear epoxy. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Small double-end package Peak wavelength λp=870nm Package in 8mm tape on 7” diameter reel Compatible with infrared and vapor phase reflow solder process. Pb free The product itself will remain within RoHS compliant version.
Applications
- Pcb Mounted Infrared Sensor Infrared Remote Control Units With High Power Requirement Scanner Infrared Applied System
SIR19-315/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.7V
- Maximum Voltage
- 1.7V
- Beam Angle
- 140°
- Package
- 603
- Mounting
- SMD
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 0.6mm
- Peak Wavelength
- 870nm
- Radiant Intensity
- 1 mW/sr
