HIR19-21C/L289/TR8

$0.26
Tax excluded

Description

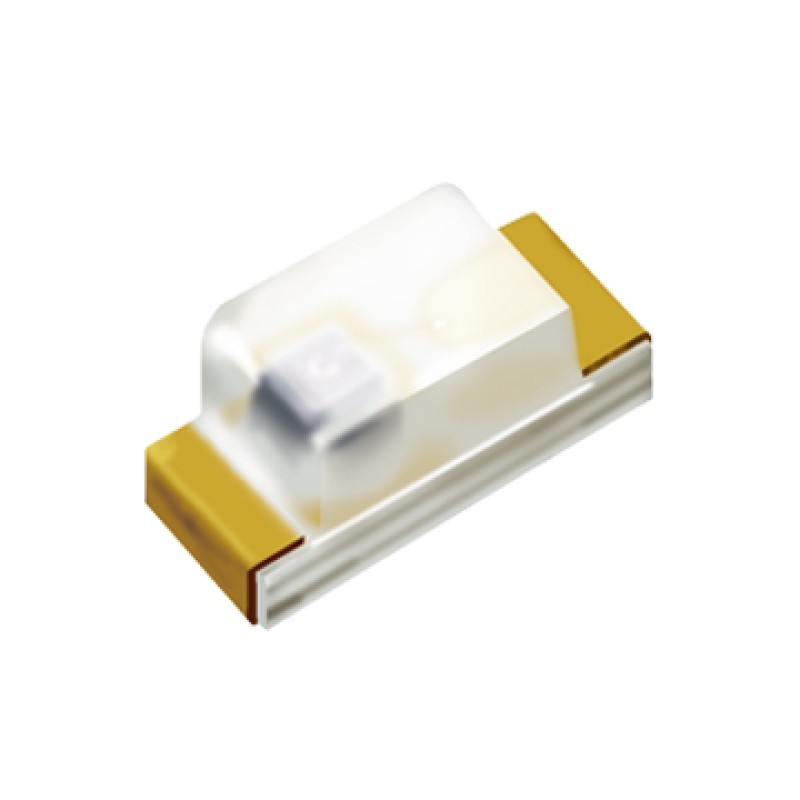

s: This part is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens. The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • High reliability Small double-end package Peak wavelength λp=855nm Package in 8mm tape on 7” diameter reel Low forward voltage Pb free The product itself will remain within RoHS compliant version.

Applications

  • Pcb Mounted Infrared Sensor Infrared Remote Control Units With High Power Requirement Smoke Detector Infrared Applied System
HIR19-21C/L289/TR8
Lens Color
Water Clear
Forward Current
20mA
Forward Voltage
1.65V
Maximum Voltage
1.7V
Pulsed Forward Current
1000mA
Beam Angle
145°
Package
603
Mounting
SMD
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 100°C
Thickness
0.8mm
Peak Wavelength
850nm
Radiant Intensity
1 mW/sr
