IR19-315C/TR8

$0.11
Tax excluded

Description

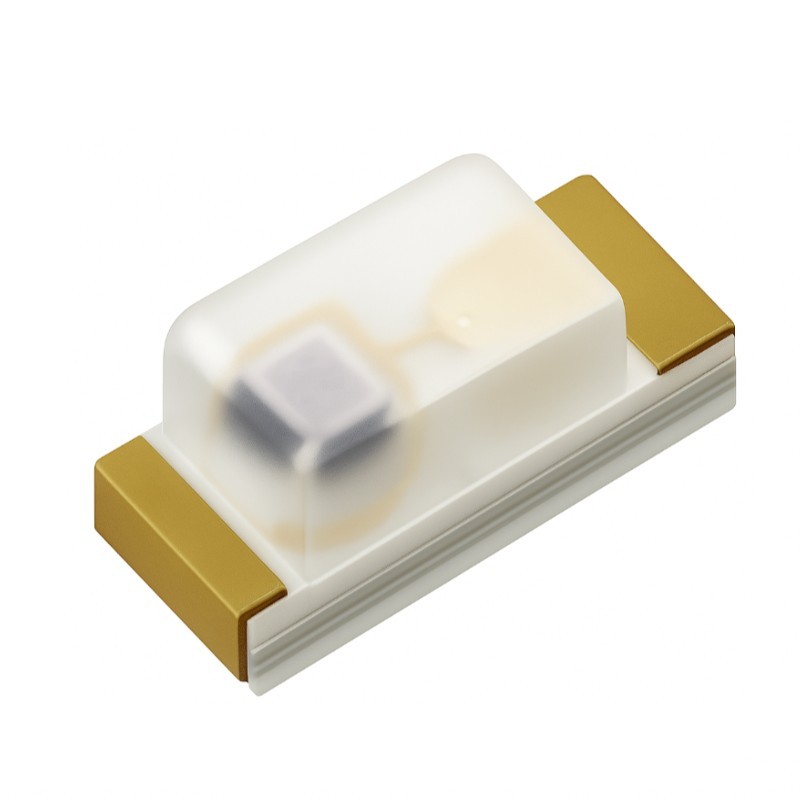

IR19-315C/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear epoxy The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • Peak wavelength λp=940nm
  • Package in 8mm tape on 7” diameter reel
  • Compatible with infrared and vapor phase reflow solder process.
  • Pb free
  • The product itself will remain within RoHS compliant version.
  • Compliance with EU REACH.
  • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications

  • Pcb Mounted Infrared Sensor
  • Infrared Remote Control Units With High Power Requirement
  • Scanner
  • Infrared Applied System
IR19-315C/TR8
Forward Current
20mA
Maximum Voltage
1.5V
Beam Angle
140°
Package
603
Peak Wavelength
940nm
Radiant Intensity
0.2 mW/sr
