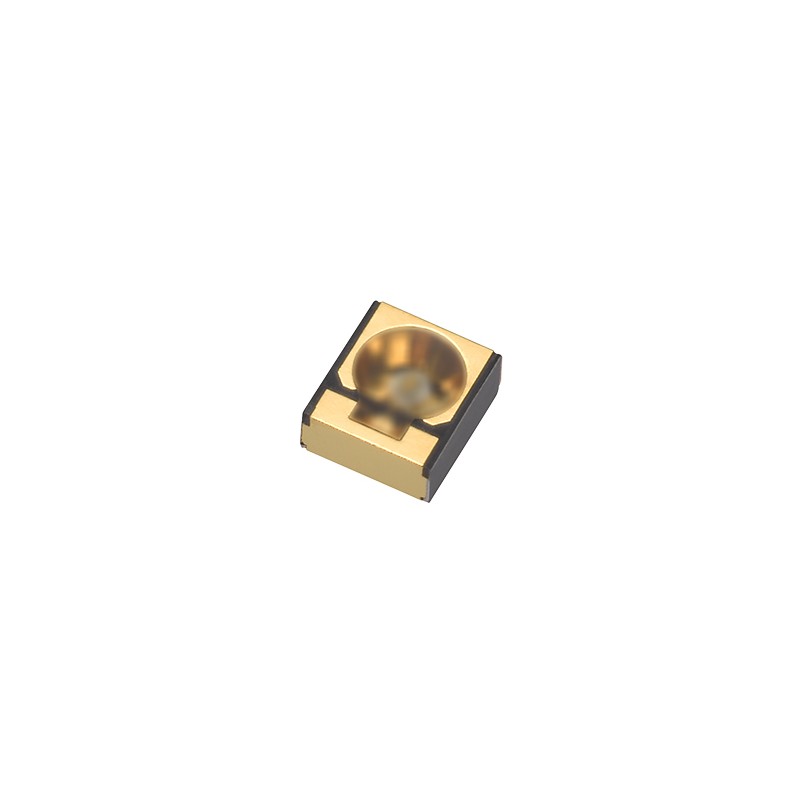

IR91-01C/L491/2R
$0.45
Tax excluded
Description
IR91-01C/L491/2R is an infrared emitting diode with miniature MIDLED package. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Low forward voltage. View angle 40° (Typ.) Pb free The product itself will remain within RoHS compliant version. Compatible with infrared and vapor phase reflow solder process Taping as Top view.
Applications
- Infrared Applied System
IR91-01C/L491/2R
- Lens Color
- Water Clear
- Forward Current
- 100mA
- Forward Voltage
- 1.2V
- Maximum Voltage
- 2.0V
- Beam Angle
- 40°
- Package
- 2219
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 0.8mm
- Peak Wavelength
- 940nm
- Radiant Intensity
- 55 mW/sr
